Type HG Stainless Steel Solid Model

This high load capacity model has a flexible thread and admits up to 9° slopes on floors and equipment. It has a smoothly rounded foot design for ease of cleaning and is also available with a non-skid rubber pad.

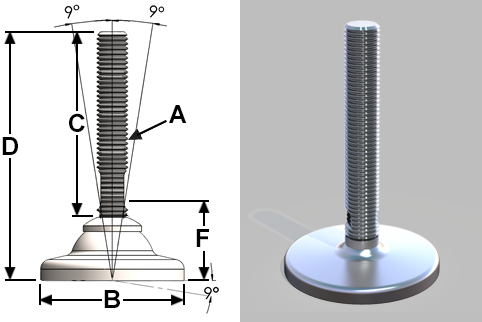

  • Dimensions in inches

Part # Thread (A) Base Dia. (B) Thread Length (C) Total Height (D) Max. Height (E) Min. Height (F) Adjustment Max Load (lbs) Max Pull (lbs) Slope (Degrees)
SW-90-58-40 5/8-11 3.50 4 5.02 4.46 1.63 2.09 3800 2700 9
SW-90-58-60 5/8-11 3.50 6 7.02 6.46 1.63 4.09 6800 2700 9
SW-90-75-40 3/4-10 3.50 4 5.02 4.35 1.63 1.88 9800 2700 9
SW-90-75-60 3/4-10 3.50 6 7.02 6.35 1.63 3.88 9800 2700 9
SW-110-58-40 5/8-11 4.29 4 5.02 4.46 1.63 2.09 6800 2700 9
SW-110-58-60 5/8-11 4.29 6 7.02 6.46 1.63 4.09 6800 2700 9
SW-110-75-60 3/4-10 4.29 6 7.02 6.35 1.63 3.88 9800 2700 9
SW-110-75-80 3/4/2010 4.29 8 9.02 8.35 1.63 5.88 8100 2700 9
