- Steel body
- Steel and Nylon Nose
- Light End Force
- Add “P” to end of part number for optional nylon patch. Do not use the nylon patch if threading into soft material such as aluminum.
- Add “PT” for nylon pellet.
Steel Nose P/N | Nylon Nose P/N | Thread (A) | Body Length (B) | Nose Length (C) | Nose Dia (D) | Start End Force (lbs) | End End Force (lbs) |
---|---|---|---|---|---|---|---|
SW10-1A | – | 6-32 | 3/8 | 1/16 | 0.045 | 0.5 | 1.5 |
SW10-2A | SWN10-2A | 8-32 | 5/8 | 3/32 | 0.069 | 0.7 | 2.3 |
SW10-3A | SWN10-3A | 10-32 | 3/4 | 1/8 | 0.092 | 1.3 | 2.7 |
SW10-4XA | – | 1/4-20 | 3/4 | 1/8 | 0.118 | 0.5 | 2 |
SW10-4A | SWN10-4A | 1/4-20 | 1 | 3/16 | 0.118 | 1 | 4 |
SW10-4YA | SWN10-4YA | 1/4-28 | 1 | 3/16 | 0.118 | 1 | 4 |

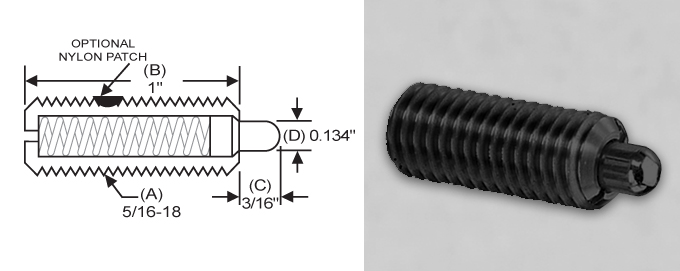

SW10-5A | SWN10-5A | 5/16-18 | 1 | 3/16 | 0.134 | 1.5 | 4.5 |
SW10-6A | SWN10-6A | 3/8-16 | 1-1/8 | 3/16 | 0.186 | 2.8 | 7.2 |
SW10-8A | SWN10-8A | 1/2-13 | 1-1/4 | 1/4 | 0.248 | 2.7 | 9.3 |
SW10-10A | SWN10-10A | 5/8-11 | 1-1/2 | 5/16 | 0.311 | 3.5 | 10.5 |
SW10-12A | – | 3/4-10 | 1-3/4 | 5/16 | 0.373 | 6 | 16 |
SW10-14A | – | 1-8 | 2-13/32 | 1/2 | 0.498 | 4 | 31 |
