- Brass & 316 Stainless Body
- Brass & 316 Stainless Nose
- Standard End Force
- Add “P” to end of part number for optional nylon patch. Do not use the nylon patch if threading into soft material such as aluminum.
- Add “PT” for nylon pellet.

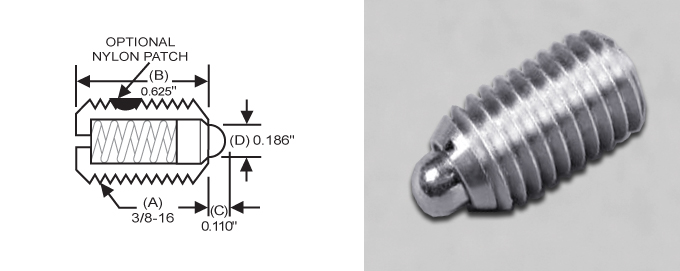

| Brass P/N | 316 Stainless P/N | Thread (A) | Body Length (B) | Nose Length (C) | Nose Dia (D) | Start End Force (lbs) | End End Force (lbs) |
|---|---|---|---|---|---|---|---|
| SWB10-2AS | SSW10-2AS-316 | 8-32 | 0.437 | 0.052 | 0.070 | 1.5 | 4.7 |
| SWB10-22AS | SSW10-22AS-316 | 8-32 | 0.500 | 0.094 | 0.070 | 0.5 | 4 |
| SWB10-2S | SSW10-2S-316 | 8-36 | 0.437 | 0.052 | 0.070 | 1.5 | 4.7 |
| SWB10-3S | SSW10-3S-316 | 10-32 | 0.468 | 0.065 | 0.093 | 1.7 | 6.2 |
| SWB10-4S | SSW10-4S-316 | 1/4-20 | 0.531 | 0.078 | 0.119 | 3 | 10.5 |
| SWB10-5S | SSW10-5S-316 | 5/16-18 | 0.562 | 0.084 | 0.135 | 3.7 | 15.5 |
| SWB10-6S | SSW10-6S-316 | 3/8-16 | 0.625 | 0.110 | 0.186 | 4.5 | 18.5 |
| SWB10-8S | SSW10-8S-316 | 1/2-13 | 0.750 | 0.151 | 0.248 | 5 | 28.5 |
| SWB10-10S | SSW10-10S-316 | 5/8-11 | 1.062 | 0.215 | 0.310 | 7 | 50.0 |
