- Steel and Stainless Steel
- Tapped Style Levelers
- Light-duty
- Vibration Control
- Inch
| Steel P/N | Stainless P/N | Thread (A) | Base Dia (B) | Total Height (D) | Max Load (lbs) | Natural Frequency (Hz) | Hex Size (E) | Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|---|
| TSW-1L | SS-TSW-1L | 3/8-16 | 1 1/4 | 1 1/2 | 50 | 14 | 5/8 | 0.28 |

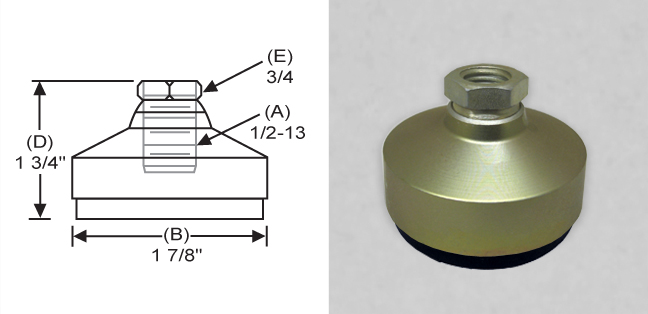

| TSW-2L | SS-TSW-2L | 1/2-13 | 1 7/8 | 1 3/4 | 120 | 14 | 3/4 | 0.70 |
| TSW-3L | SS-TSW-3L | 5/8-11 | 2 1/2 | 1 7/8 | 220 | 13.5 | 7/8 | 1.24 |

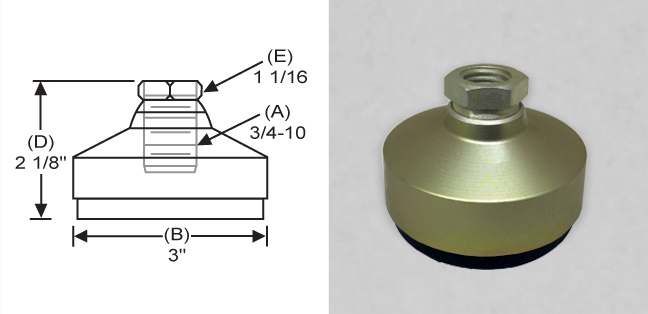

| TSW-4L | SS-TSW-4L | 3/4-10 | 3 | 2 1/8 | 325 | 13.5 | 1 1/16 | 2.12 |
| TSW-5L | SS-TSW-5L | 1-8 | 4 | 2 1/2 | 590 | 13 | 1 3/8 | 3.86 |

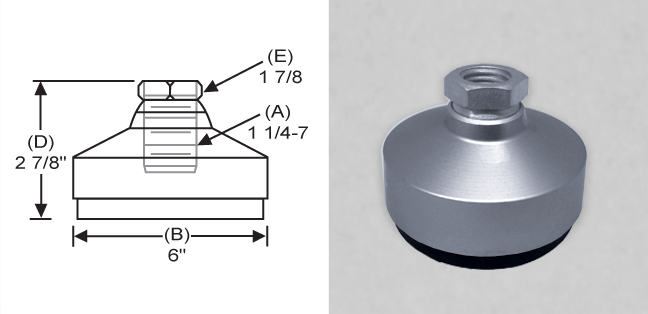

| TSW-6L | SS-TSW-6L | 1 1/4-7 | 6 | 2 7/8 | 1350 | 13 | 1 7/8 | 7.70 |
