Steel washers are machined from cold finished steel and then case hardened. Black oxide finish. Stainless steel washers are machined from 303 stainless steel. All are precision machined with no sharp edges. Tops (convex) and bottoms (concave) can be ordered separately., Inch

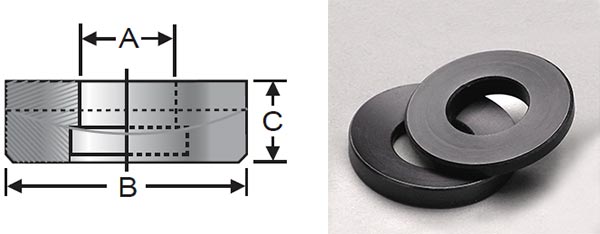

Steel P/N | Stainless P/N | Bolt Size | Hole Dia (A) | Outside Dia (B) | Thickness (C) |
---|---|---|---|---|---|
TPW-1 | STPW-1 | 1/4 | 9/32 | 5/8 | 3/16 |
TPW-2 | STPW-2 | 5/16 | 11/32 | 13/16 | 1/4 |
TPW-3 | STPW-3 | 3/8 | 13/32 | 15/16 | 1/4 |
TPW-4 | STPW-4 | 1/2 | 7/32 | 1 3/16 | 5/16 |
TPW-5 | STPW-5 | 5/8 | 21/32 | 1 3/8 | 5/16 |
TPW-6 | STPW-6 | 3/4 | 25/32 | 1 5/8 | 3/8 |
TPW-7 | STPW-7 | 7/8 | 15/16 | 1 7/8 | 3/8 |
TPW-8 | STPW-8 | 1 | 1 1/16 | 2 | 1/2 |
