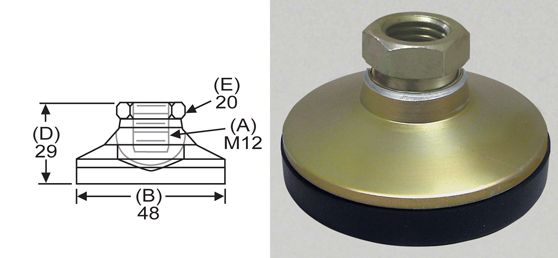

Steel SnapLock™ (Tapped Style, Metric)

  • Steel and Stainless Steel
  • Tapped Style
  • Swivel
  • Metric
Steel P/N Stainless P/N Thread (A) Base Dia (B) Total Height (D) Max Load (kg) Hex Size (E) Ship Wt (lbs)
MSL-0T MSSL-0T M8 25 17 340 12 0.08
MSL-1T MSSL-1T M10 32 22 1270 16 0.14
MSL-2T MSSL-2T M12 48 29 1700 20 0.34
MSL-3T MSSL-3T M16 64 32 2045 22 0.78
MSL-4T MSSL-4T M20 76 38 2520 27 1.30
