- Steel, 303 Stainless Steel and 316 Stainless Steel
- Tapped Style
- Swivel
- Non-skid
- Inch

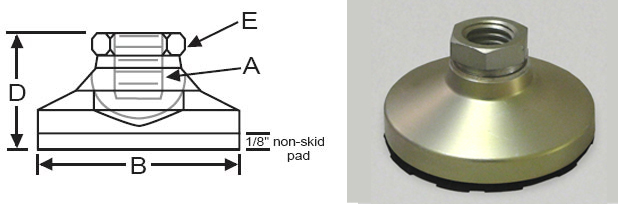

| Steel P/N | 303 Stainless P/N | 316 Stainless P/N | Thread (A) | Base Dia (B) | Total Height (D) | Max Load (lbs) | Hex Size (E) | Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|---|
| NTS-00 | NSTS-00 | NSTS-00-316 | 10-32 | 3/4 | 5/8 | 525 | 3/8 | 0.02 |
| NTS-0 | NSTS-0 | NSTS-0-316 | 1/4-20 | 1 | 13/16 | 750 | 1/2 | 0.08 |
| NTS-0A | NSTS-0A | NSTS-0A-316 | 1/4-28 | 1 | 13/16 | 580 | 1/2 | 0.08 |
| NTS-100 | NSTS-100 | NSTS-100-316 | 5/16-18 | 1 1/4 | 1 | 1875 | 5/8 | 0.12 |
| NTS-101 | NSTS-101 | NSTS-101-316 | 5/16-24 | 1 1/4 | 1 | 1600 | 5/8 | 0.12 |
| NTS-1 | NSTS-1 | NSTS-1-316 | 3/8-16 | 1 1/4 | 1 | 2800 | 5/8 | 0.14 |
| NTS-1A | NSTS-1A | NSTS-1A-316 | 3/8-24 | 1 1/4 | 1 | 2475 | 5/8 | 0.14 |
| NTS-2 | NSTS-2 | NSTS-2-316 | 1/2-13 | 1 7/8 | 1 1/4 | 3750 | 3/4 | 0.35 |

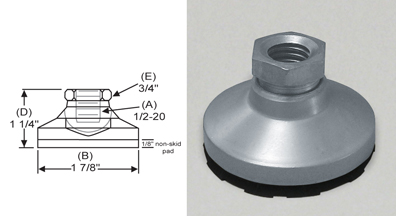

| NTS-2A | NSTS-2A | NSTS-2A-316 | 1/2-20 | 1 7/8 | 1 1/4 | 3000 | 3/4 | 0.35 |

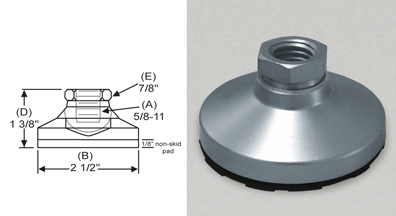

| NTS-3 | NSTS-3 | NSTS-3-316 | 5/8-11 | 2 1/2 | 1 3/8 | 4500 | 7/8 | 0.80 |
| NTS-3A | NSTS-3A | NSTS-3A-316 | 5/8-18 | 2 1/2 | 1 3/8 | 3750 | 7/8 | 0.80 |
| NTS-4 | NSTS-4 | NSTS-4-316 | 3/4-10 | 3 | 1 5/8 | 5550 | 1 1/16 | 1.34 |
| NTS-4A | NSTS-4A | NSTS-4A-316 | 3/4-16 | 3 | 1 5/8 | 4650 | 1 1/16 | 1.34 |
| NTS-5 | NSTS-5 | NSTS-5-316 | 1-8 | 4 | 2 | 15000 | 1 3/8 | 2.58 |
| NTS-5A | NSTS-5A | NSTS-5A-316 | 7/8-14 | 4 | 2 | 10125 | 1 3/8 | 2.52 |
| NTS-5B | NSTS-5B | NSTS-5B-316 | 7/8-9 | 4 | 2 | 11250 | 1 3/8 | 2.52 |

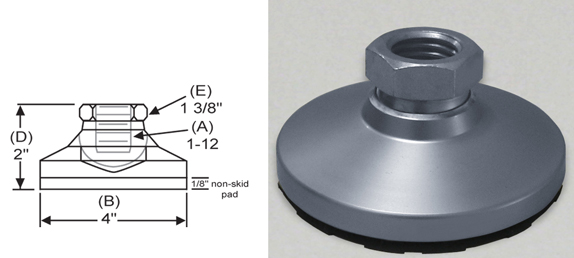

| NTS-5C | NSTS-5C | NSTS-5C-316 | 1-12 | 4 | 2 | 13500 | 1 3/8 | 2.58 |
| NTS-6 | NSTS-6 | NSTS-6-316 | 1 1/4-7 | 6 | 2 7/8 | 32250 | 1 7/8 | 5.59 |
