Steel and Stainless Steel Integrated Stud Knurled Control Knobs, Metric
| Steel P/N | Stainless P/N | Thread (A) | Knob Dia (A) | Total Length (B) | Hub Dia (C) | Knurled Width (D) | Reamed Depth (E) | Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|---|
| MSKS-011-S | MWSS-011-S | M5 | 19 | 16 | 13 | 6 | 16 | 0.60 |
| MSKS-012-S | MWSS-012-S | M5 | 19 | 16 | 13 | 6 | 25 | 0.60 |
| MSKS-013-S | MWSS-013-S | M6 | 19 | 16 | 13 | 6 | 19 | 0.10 |
| MSKS-014-S | MWSS-014-S | M6 | 19 | 19 | 13 | 6 | 32 | 0.10 |
| MSKS-015-S | MWSS-015-S | M6 | 25 | 19 | 16 | 6 | 44 | 0.11 |
| MSKS-016-S | MWSS-016-S | M6 | 25 | 19 | 16 | 6 | 76 | 0.12 |
| MSKS-017-S | MWSS-017-S | M8 | 25 | 19 | 16 | 6 | 44 | 0.12 |
| MSKS-018-S | MWSS-018-S | M8 | 25 | 25 | 16 | 6 | 76 | 0.14 |
| MSKS-019-S | MWSS-019-S | M8 | 38 | 25 | 19 | 8 | 44 | 0.26 |

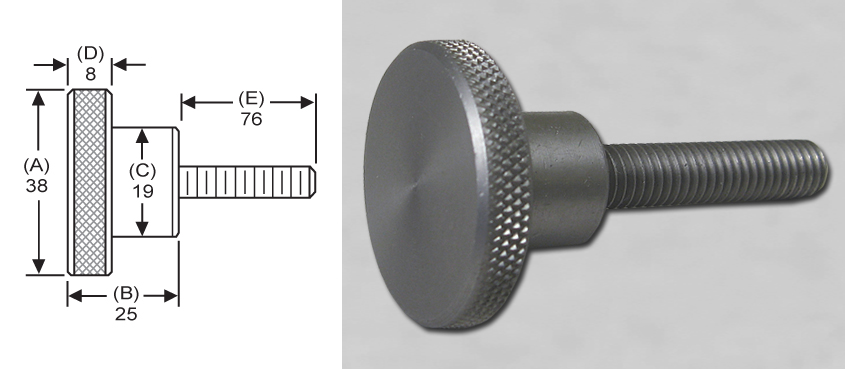

| MSKS-021-S | MWSS-021-S | M8 | 38 | 25 | 19 | 8 | 76 | 0.28 |
| MSKS-022-S | MWSS-022-S | M10 | 38 | 25 | 19 | 8 | 44 | 0.26 |
| MSKS-023-S | MWSS-023-S | M10 | 38 | 25 | 19 | 8 | 76 | 0.30 |
| MSKS-024-S | MWSS-024-S | M10 | 51 | 29 | 25 | 10 | 44 | 0.52 |
| MSKS-025-S | MWSS-025-S | M10 | 51 | 29 | 25 | 10 | 76 | 0.56 |
| MSKS-026-S | MWSS-026-S | M12 | 51 | 29 | 25 | 10 | 44 | 0.56 |

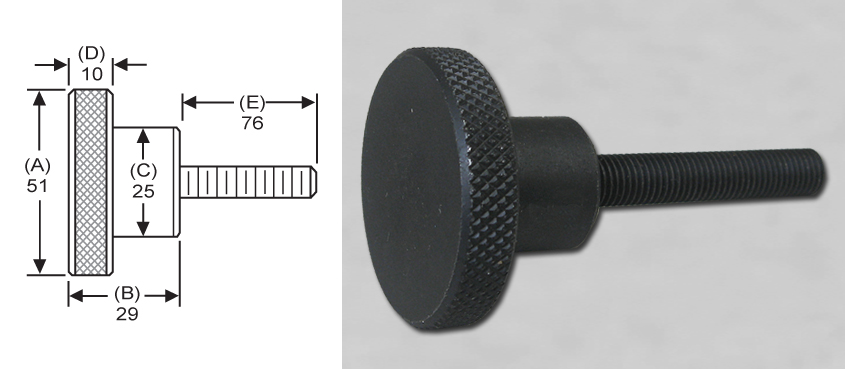

| MSKS-027-S | MWSS-027-S | M12 | 51 | 29 | 25 | 10 | 76 | 0.60 |
| MSKS-028-S | MWSS-028-S | M12 | 64 | 38 | 38 | 14 | 44 | 1.30 |
| MSKS-029-S | MWSS-029-S | M12 | 64 | 38 | 38 | 14 | 76 | 1.26 |
| MSKS-031-S | MWSS-031-S | M16 | 64 | 38 | 38 | 14 | 44 | 1.34 |
| MSKS-032-S | MWSS-032-S | M16 | 64 | 38 | 38 | 14 | 76 | 1.38 |
