Aluminum, Steel, Stainless Steel and Brass Lever Shafts, Inch
| Aluminum P/N | Steel P/N | Stainless P/N | Brass P/N | Thread (A) | O.D. (B) | Thread Length
(C) |
Thread Length (D) | Total Height (E) |
|---|---|---|---|---|---|---|---|---|
| LSA00F-138 | LS00F-138 | LSS00F-138 | LSB00F-138 | 10-32 | 1/4 | 3/8 | 1/4 | 1 3/8 |
| LSA00F-278 | LS00F-278 | LSS00F-278 | LSB00F-278 | 10-32 | 1/4 | 3/8 | 1/4 | 2 7/8 |
| LSA0-238 | LS0-238 | LSS0-238 | LSB0-238 | 1/4-20 | 3/8 | 3/8 | 1/4 | 2 3/8 |
| LSA0-578 | LS0-578 | LSS0-578 | LSB0-578 | 1/4-20 | 3/8 | 1/2 | 3/8 | 5 7/8 |

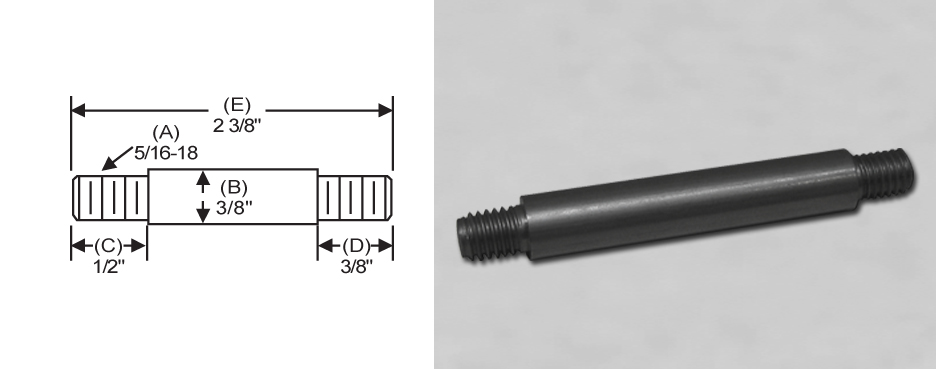

| LSA100-238 | LS100-238 | LSS100-238 | LSB100-238 | 5/16-18 | 3/8 | 1/2 | 3/8 | 2 3/8 |
| LSA100-578 | LS100-578 | LSS100-578 | LSB100-578 | 5/16-18 | 3/8 | 1/2 | 3/8 | 5 7/8 |

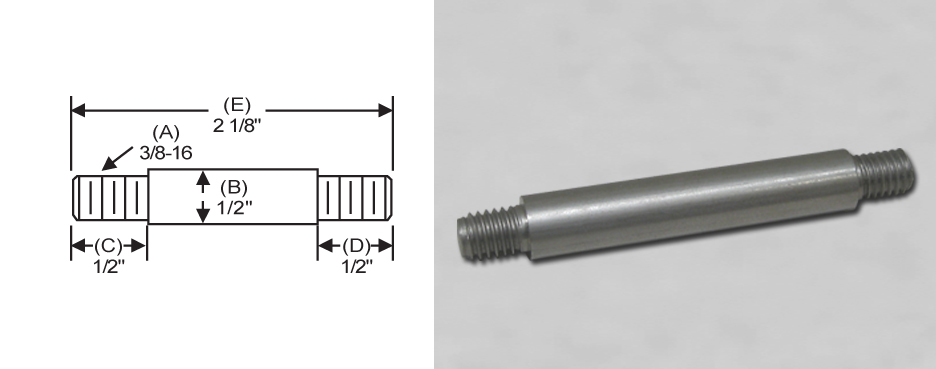

| LSA1-218 | LS1-218 | LSS1-218 | LSB1-218 | 3/8-16 | 1/2 | 1/2 | 1/2 | 2 1/8 |
| LSA1-358 | LS1-358 | LSS1-358 | LSB1-358 | 3/8-16 | 1/2 | 1/2 | 1/2 | 3 5/8 |
| LSA1-758 | LS1-758 | LSS1-758 | LSB1-758 | 3/8-16 | 1/2 | 1/2 | 1/2 | 7 5/8 |

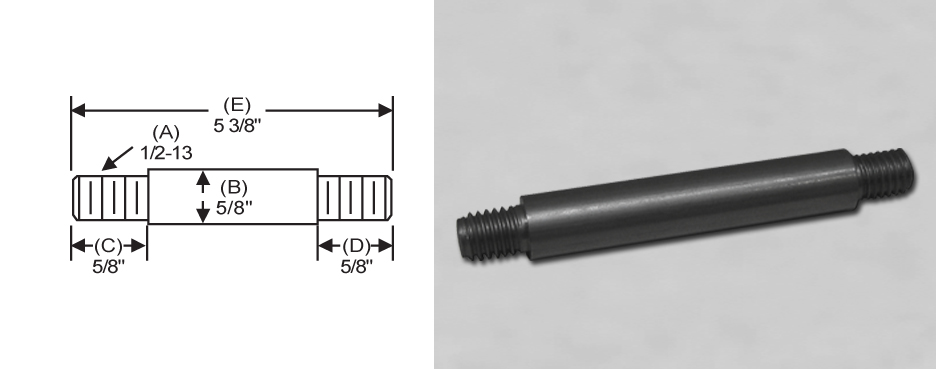

| LSA2-538 | LS2-538 | LSS2-538 | LSB2-538 | 1/2-13 | 5/8 | 5/8 | 5/8 | 5 3/8 |
| LSA2-738 | LS2-738 | LSS2-738 | LSB2-738 | 1/2-13 | 5/8 | 5/8 | 5/8 | 7 3/8 |
| LSA2-938 | LS2-938 | LSS2-938 | LSB2-938 | 1/2-13 | 5/8 | 5/8 | 5/8 | 9 3/8 |
