- Steel and Stainless Steel
- Nylon Base
- Tapped Style
- Inch
- Patent# US 6,742,750 B2
| Steel P/N | Stainless P/N | Thread (A) | Base Dia (B) | Total Height (D) | Max Load (lbs) | Hex Size (E) | Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|
| BNYLA1-T | BSNYLA1-T | 3/8-16 | 1.58 | 1 3/8 | 2500 | 5/8 | 0.14 |
| BNYLA2-T | BSNYLA2-T | 3/8-16 | 2 | 1 7/16 | 4000 | 5/8 | 0.14 |
| BNYLB2-T | BSNYLB2-T | 1/2-13 | 2 | 1 5/8 | 4000 | 3/4 | 0.16 |
| BNYLC2-T | BSNYLC2-T | 5/8-11 | 2 | 1 11/16 | 4000 | 7/8 | 0.18 |
| BNYLA3-T | BSNYLA3-T | 3/8-16 | 3 | 1 7/16 | 5000 | 5/8 | 0.22 |
| BNYLB3-T | BSNYLB3-T | 1/2-13 | 3 | 1 5/8 | 5000 | 3/4 | 0.24 |
| BNYLC3-T | BSNYLC3-T | 5/8-11 | 3 | 1 11/16 | 5000 | 7/8 | 0.26 |
| BNYLD3-T | BSNYLD3-T | 3/4-10 | 3 | 1 13/16 | 5000 | 1 1/16 | 0.34 |

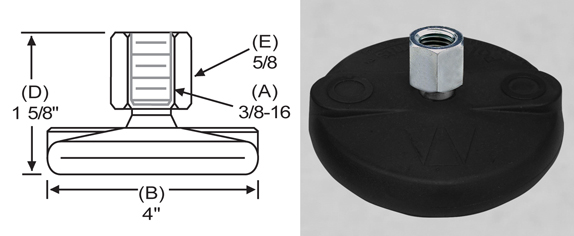

| BNYLA4-T | BSNYLA4-T | 3/8-16 | 4 | 1 5/8 | 3500 | 5/8 | 0.36 |
| BNYLB4-T | BSNYLB4-T | 1/2-13 | 4 | 1 13/16 | 5000 | 3/4 | 0.40 |
| BNYLC4-T | BSNYLC4-T | 5/8-11 | 4 | 1 7/8 | 6000 | 7/8 | 0.42 |
| BNYLD4-T | BSNYLD4-T | 3/4-10 | 4 | 2 | 7500 | 1 1/16 | 0.50 |
| BNYLE4-T | BSNYLE4-T | 1-8 | 4 | 2 3/8 | 7500 | 1 3/8 | 0.94 |
