- Steel and Stainless Steel
- Tapped Style Levelers
- Light-duty
- Vibration Control
- Metric

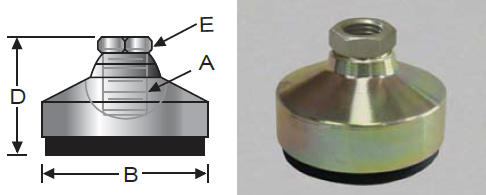

Steel P/N | Stainless P/N | Thread (A) | Base Dia (B) | Total Height (D) | Max Load (Kgs) | Natural Frequency (Hz) | Hex Size (E) | Ship Wt (lbs) |
---|---|---|---|---|---|---|---|---|
MT-SW1L | SSMT-SW1L | M10 | 32 | 38 | 90 | 14 | 16 | 0.28 |
MT-SW2L | SSMT-SW2L | M12 | 48 | 44 | 227 | 14 | 20 | 0.70 |
MT-SW3L | SSMT-SW3L | M16 | 64 | 48 | 408 | 13.5 | 22 | 1.24 |
MT-SW4L | SSMT-SW4L | M20 | 76 | 54 | 567 | 13.5 | 27 | 2.12 |
MT-SW5L | SSMT-SW5L | M24 | 102 | 64 | 1020 | 13 | 35 | 3.86 |
MT-SW6L | SSMT-SW6L | M30 | 152 | 73 | 2268 | 13 | 48 | 7.70 |
