Steel and Stainless Steel Tapped Through Knurled Control Knobs, Inch
Steel P/N | Stainless P/N | Thread Size | Knob Dia (A) | Total Length (B) | Hub Dia (C) | Knurled Width (D) | Thread Depth (E) | Ship Wt (lbs) |
---|---|---|---|---|---|---|---|---|
SKTT-021 | WTRT-021 | 10-24 | 3/4 | 5/8 | 1/2 | 1/4 | 3/8 | 0.04 |
SKTTF-021 | WTRTF-021 | 10-32 | 3/4 | 5/8 | 1/2 | 1/4 | 3/8 | 0.04 |
SKTT-022 | WTRT-022 | 1/4-20 | 3/4 | 5/8 | 1/2 | 1/4 | 3/8 | 0.04 |
SKTTF-022 | WTRTF-022 | 1/4-28 | 3/4 | 5/8 | 1/2 | 1/4 | 3/8 | 0.04 |
SKTT-023 | WTRT-023 | 1/4-20 | 1 | 3/4 | 5/8 | 1/4 | 1/2 | 0.08 |
SKTTF-023 | WTRTF-023 | 1/4-28 | 1 | 3/4 | 5/8 | 1/4 | 1/2 | 0.08 |
SKTT-024 | WTRT-024 | 5/16-18 | 1 | 3/4 | 5/8 | 1/4 | 1/2 | 0.08 |
SKTTF-024 | WTRTF-024 | 5/16-24 | 1 | 3/4 | 5/8 | 1/4 | 1/2 | 0.08 |
SKTT-025 | WTRT-025 | 5/16-18 | 1 1/2 | 1 | 3/4 | 5/16 | 5/8 | 0.20 |
SKTTF-025 | WTRTF-025 | 5/16-24 | 1 1/2 | 1 | 3/4 | 5/16 | 5/8 | 0.20 |
SKTT-026 | WTRT-026 | 3/8-16 | 1 1/2 | 1 | 3/4 | 5/16 | 5/8 | 0.20 |
SKTTF-026 | WTRTF-026 | 3/8-24 | 1 1/2 | 1 | 3/4 | 5/16 | 5/8 | 0.20 |
SKTT-027 | WTRT-027 | 3/8-16 | 2 | 1 1/8 | 1 | 3/8 | 5/8 | 0.46 |
SKTTF-027 | WTRTF-027 | 3/8-24 | 2 | 1 1/8 | 1 | 3/8 | 5/8 | 0.46 |
SKTT-028 | WTRT-028 | 1/2-13 | 2 | 1 1/8 | 1 | 3/8 | 5/8 | 0.46 |
SKTTF-028 | WTRTF-028 | 1/2-20 | 2 | 1 1/8 | 1 | 3/8 | 5/8 | 0.46 |
SKTT-029 | WTRT-029 | 1/2-13 | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 3/4 | 1.16 |
SKTTF-029 | WTRTF-029 | 1/2-20 | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 3/4 | 1.16 |
SKTT-031 | WTRT-031 | 5/8-11 | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 3/4 | 1.16 |
SKTTF-031 | WTRTF-031 | 5/8-18 | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 3/4 | 1.16 |
SKTT-032 | WTRT-032 | 5/8-11 | 3 | 1 3/4 | 1 3/4 | 5/8 | 1 | 1.96 |
SKTTF-032 | WTRTF-032 | 5/8-18 | 3 | 1 3/4 | 1 3/4 | 5/8 | 1 | 1.96 |
SKTT-033 | WTRT-033 | 3/4-10 | 3 | 1 3/4 | 1 3/4 | 5/8 | 1 | 1.96 |

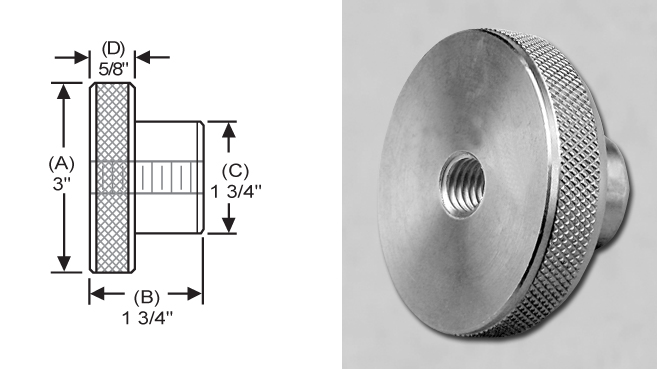

SKTTF-033 | WTRTF-033 | 3/4-16 | 3 | 1 3/4 | 1 3/4 | 5/8 | 1 | 1.96 |
