Adjustable locating screws are used together or in combination with fixed locating pins to accurately position work pieces in jigs and fixtures. Made from heat treated steel with a black oxide finish.

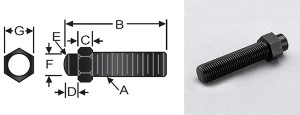

| S&W P/N | Thread (A) | Total Length (B) | Hex Height (D) | Button Height (D) | Button Radius (E) | Base Dia (F) | Hex Size (G) |
|---|---|---|---|---|---|---|---|
| HJS-575 | 10-32 | 1 | 1/8 | 1/8 | 1/8 | 3/16 | 1/4 |
| HJS-580 | 1/4-28 | 1 1/2 | 3/16 | 3/16 | 3/16 | 1/4 | 3/8 |
| HJS-585 | 3/8-24 | 2 | 1/4 | 1/4 | 1/4 | 3/8 | 1/2 |
| HJS-590 | 1/2-20 | 2 1/2 | 5/16 | 5/16 | 5/16 | 1/2 | 5/8 |
| HJS-595 | 5/8-18 | 3 | 3/8 | 3/8 | 3/8 | 5/8 | 3/4 |
