Low Profile (Heavy-duty pad, Metric)

  • Steel & Stainless Steel
  • Stud Style
  • Heavy-Duty Vibration Pad
  • Metric
Steel P/N Stainless P/N Thread (A) Base Dia (B) Thread Length (C) Total Height (D) Max Load (kg) Hex Size (E) Ship Wt (lbs)
MLP1-A3H MSLP1-A3H M10 51 76 116 909 16 0.46
MLP1-A4H MSLP1-A4H M10 51 102 141 909 16 0.48
MLP1-A6H MSLP1-A6H M10 51 152 192 909 16 0.52

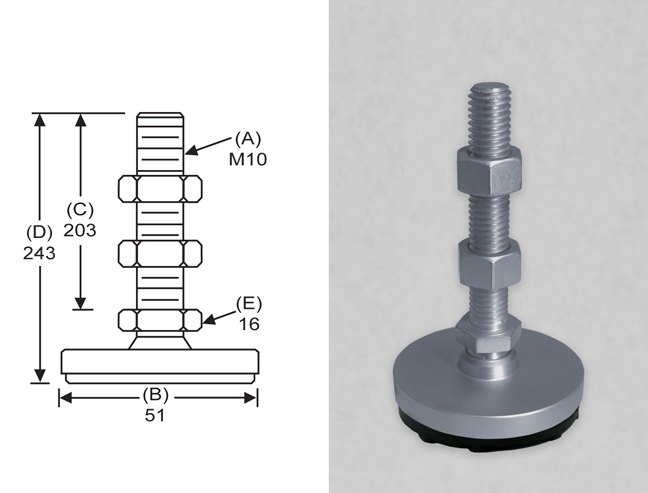

MLP1-A8H MSLP1-A8H M10 51 203 243 909 16 0.54
MLP1-B3H MSLP1-B3H M12 51 76 116 1590 20 0.56
MLP1-B4H MSLP1-B4H M12 51 102 141 1590 20 0.60
MLP1-B6H MSLP1-B6H M12 51 152 192 1590 20 0.68
MLP1-B8H MSLP1-B8H M12 51 203 243 1590 20 0.76
MLP1-C3H MSLP1-C3H M16 51 76 116 2272 22 0.70
MLP1-C4H MSLP1-C4H M16 51 102 141 2272 22 0.80
MLP1-C6H MSLP1-C6H M16 51 152 192 2272 22 0.94
MLP1-C8H MSLP1-C8H M16 51 203 243 2272 22 1.10
MLP2-A3H MSLP2-A3H M10 64 76 116 909 16 0.58
MLP2-A4H MSLP2-A4H M10 64 102 141 909 16 0.62
MLP2-A6H MSLP2-A6H M10 64 152 192 909 16 0.66
MLP2-A8H MSLP2-A8H M10 64 203 243 909 16 0.70
MLP2-B3H MSLP2-B3H M12 64 76 116 1590 20 0.68
MLP2-B4H MSLP2-B4H M12 64 102 141 1590 20 0.72
MLP2-B6H MSLP2-B6H M12 64 152 192 1590 20 0.87
MLP2-B8H MSLP2-B8H M12 64 203 243 1590 20 0.90
MLP2-C3H MSLP2-C3H M16 64 76 116 2272 22 0.82
MLP2-C4H MSLP2-C4H M16 64 102 141 2272 22 0.92
MLP2-C6H MSLP2-C6H M16 64 152 192 2272 22 1.06
MLP2-C8H MSLP2-C8H M16 64 203 243 2272 22 1.20
MLP3-A3H MSLP3-A3H M10 76 76 116 909 16 0.92
MLP3-A4H MSLP3-A4H M10 76 102 141 909 16 0.96
MLP3-A6H MSLP3-A6H M10 76 152 192 909 16 1.00
MLP3-A8H MSLP3-A8H M10 76 203 243 909 16 1.05

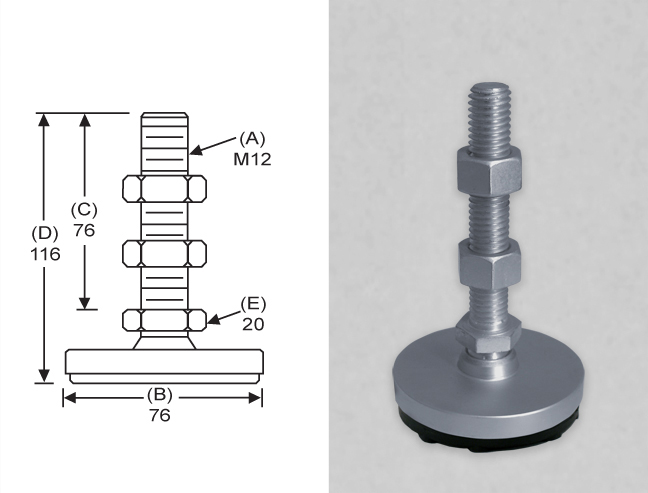

MLP3-B3H MSLP3-B3H M12 76 76 116 1590 20 0.97
MLP3-B4H MSLP3-B4H M12 76 102 141 1590 20 1.02
MLP3-B6H MSLP3-B6H M12 76 152 192 1590 20 1.12
MLP3-B8H MSLP3-B8H M12 76 203 243 1590 20 1.20
MLP3-C3H MSLP3-C3H M16 76 76 116 2272 22 1.12
MLP3-C4H MSLP3-C4H M16 76 102 141 2272 22 1.25
MLP3-C6H MSLP3-C6H M16 76 152 192 2272 22 1.38
MLP3-C8H MSLP3-C8H M16 76 203 243 2272 22 1.52
MLP3-D3H MSLP3-D3H M20 76 76 116 2727 27 1.31
MLP3-D4H MSLP3-D4H M20 76 102 141 2727 27 1.44
MLP3-D6H MSLP3-D6H M20 76 152 192 2727 27 1.64
MLP3-D8H MSLP3-D8H M20 76 203 243 2727 27 1.84
MLP4-B3H MSLP4-B3H M12 102 76 116 1590 20 1.44
MLP4-B4H MSLP4-B4H M12 102 102 141 1590 20 1.50
MLP4-B6H MSLP4-B6H M12 102 152 192 1590 20 1.56
MLP4-B8H MSLP4-B8H M12 102 203 243 1590 20 1.62
MLP4-C3H MSLP4-C3H M16 102 76 116 2272 22 1.58
MLP4-C4H MSLP4-C4H M16 102 102 141 2272 22 1.70
MLP4-C6H MSLP4-C6H M16 102 152 192 2272 22 1.82

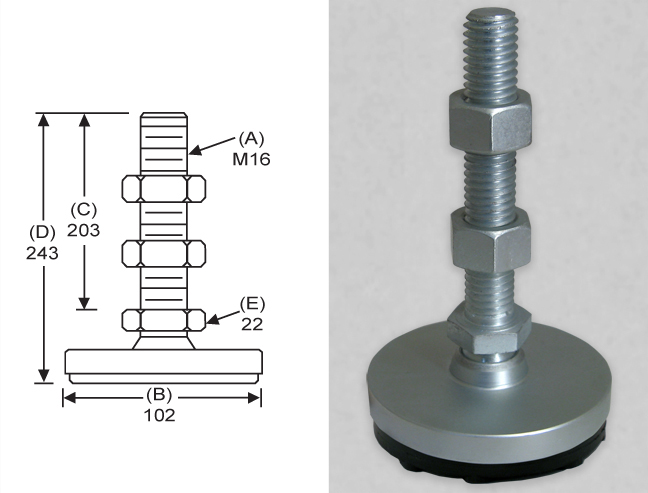

MLP4-C8H MSLP4-C8H M16 102 203 243 2272 22 1.98
MLP4-D3H MSLP4-D3H M20 102 76 116 2727 27 1.78
MLP4-D4H MSLP4-D4H M20 102 102 141 2727 27 1.90
MLP4-D6H MSLP4-D6H M20 102 152 192 2727 27 2.10
MLP4-D8H MSLP4-D8H M20 102 203 243 2727 27 2.30

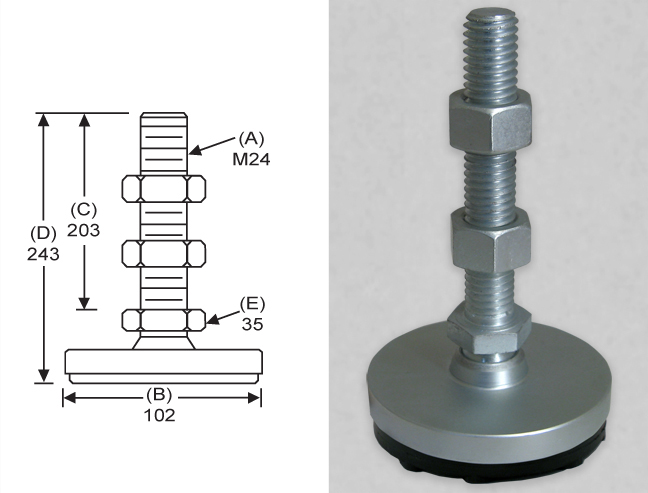

MLP4-E3H MSLP4-E3H M24 102 76 116 3409 35 2.03
MLP4-E4H MSLP4-E4H M24 102 102 141 3409 35 2.15
MLP4-E6H MSLP4-E6H M24 102 152 192 3409 35 2.28
MLP4-E8H MSLP4-E8H M24 102 203 243 3409 35 2.43
MLP5-C3H MSLP5-C3H M16 152 76 116 2272 22 3.60
MLP5-C4H MSLP5-C4H M16 152 102 141 2272 22 3.72
MLP5-C6H MSLP5-C6H M16 152 152 192 2272 22 3.86
MLP5-C8H MSLP5-C8H M16 152 203 243 2272 22 4.00
MLP5-D3H MSLP5-D3H M20 152 76 116 2727 27 3.87
MLP5-D4H MSLP5-D4H M20 152 102 141 2727 27 3.92
MLP5-D6H MSLP5-D6H M20 152 152 192 2727 27 4.12
MLP5-D8H MSLP5-D8H M20 152 203 243 2727 27 4.34
MLP5-E3H MSLP5-E3H M24 152 76 116 3409 35 4.16
MLP5-E4H MSLP5-E4H M24 152 102 141 3409 35 4.21
MLP5-E6H MSLP5-E6H M24 152 152 192 3409 35 4.30

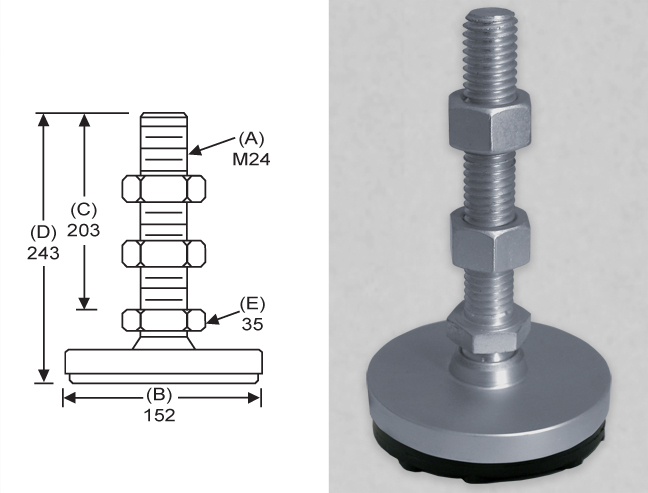

MLP5-E8H MSLP5-E8H M24 152 203 243 3409 35 4.50
