- Steel and Stainless Steel
- Standard Low Profile Base
- Stud Style
- Inch

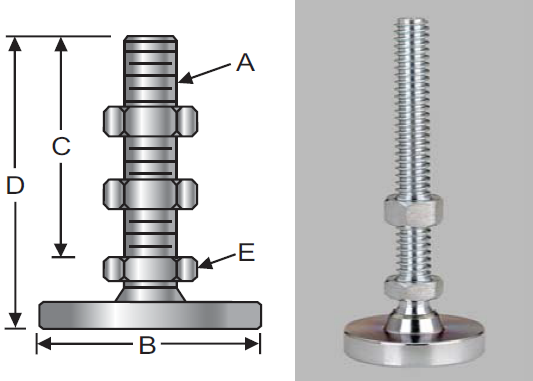

| Steel P/N | Stainless P/N | Thread (A) | Base Dia (B) | Thread Length (C) | Total Height (D) | Hex Size (E) | Max Load (lbs) |
|---|---|---|---|---|---|---|---|
| LP1-A4-ACME1 | SLP1-A4-ACME1 | 3/8-12 | 2 | 4 | 5 | 3/4 | 3000 |
| LP1-A6-ACME1 | SLP1-A6-ACME1 | 3/8-12 | 2 | 6 | 7 | 3/4 | 3000 |
| LP1-B4-ACME1 | SLP1-B4-ACME1 | 1/2-10 | 2 | 4 | 5 | 3/4 | 5250 |
| LP1-B6-ACME1 | SLP1-B6-ACME1 | 1/2-10 | 2 | 6 | 7 | 3/4 | 5250 |
| LP1-C4-ACME1 | SLP1-C4-ACME1 | 5/8-8 | 2 | 4 | 5 | 7/8 | 7500 |
| LP1-C6-ACME1 | SLP1-C6-ACME1 | 5/8-8 | 2 | 6 | 7 | 7/8 | 7500 |
| LP2-A4-ACME1 | SLP2-A4-ACME1 | 3/8-12 | 2 1/2 | 4 | 5 | 3/4 | 3000 |
| LP2-A6-ACME1 | SLP2-A6-ACME1 | 3/8-12 | 2 1/2 | 6 | 7 | 3/4 | 3000 |
| LP2-B4-ACME1 | SLP2-B4-ACME1 | 1/2-10 | 2 1/2 | 4 | 5 | 3/4 | 5250 |
| LP2-B6-ACME1 | SLP2-B6-ACME1 | 1/2-10 | 2 1/2 | 6 | 7 | 3/4 | 5250 |
| LP2-C4-ACME1 | SLP2-C4-ACME1 | 5/8-8 | 2 1/2 | 4 | 5 | 7/8 | 7500 |
| LP2-C6-ACME1 | SLP2-C6-ACME1 | 5/8-8 | 2 1/2 | 6 | 7 | 7/8 | 7500 |
| LP3-B6-ACME1 | SLP3-B6-ACME1 | 1/2-10 | 3 | 6 | 7 | 3/4 | 5250 |
| LP3-C4-ACME1 | SLP3-C4-ACME1 | 5/8-8 | 3 | 4 | 5 | 7/8 | 7500 |
| LP3-C6-ACME1 | SLP3-C6-ACME1 | 5/8-8 | 3 | 6 | 7 | 7/8 | 7500 |
| LP3-D4-ACME1 | SLP3-D4-ACME1 | 3/4-6 | 3 | 4 | 5 | 1 1/16 | 9000 |
| LP3-D6-ACME1 | SLP3-D6-ACME1 | 3/4-6 | 3 | 6 | 7 | 1 1/16 | 9000 |
| LP4-B4-ACME1 | SLP4-B4-ACME1 | 1/2-10 | 4 | 4 | 5 | 3/4 | 5250 |
| LP4-B6-ACME1 | SLP4-B6-ACME1 | 1/2-10 | 4 | 6 | 7 | 3/4 | 5250 |
| LP4-C4-ACME1 | SLP4-C4-ACME1 | 5/8-8 | 4 | 4 | 5 | 7/8 | 7500 |
| LP4-C6-ACME1 | SLP4-C6-ACME1 | 5/8-8 | 4 | 6 | 7 | 7/8 | 7500 |
| LP4-D4-ACME1 | SLP4-D4-ACME1 | 3/4-6 | 4 | 4 | 5 | 1 1/16 | 9000 |
| LP4-D6-ACME1 | SLP4-D6-ACME1 | 3/4-6 | 4 | 6 | 7 | 1 1/16 | 9000 |
| LP4-E4-ACME1 | SLP4-E4-ACME1 | 1-5 | 4 | 4 | 5 | 1 3/8 | 11250 |
| LP4-E6-ACME1 | SLP4-E6-ACME1 | 1-5 | 4 | 6 | 7 | 1 3/8 | 11250 |
