Steel and Stainless Steel Integrated Stud Knurled Control Knobs, Inch
| Steel P/N | Stainless P/N | Thread Size | Knob Dia (A) | Total Length (B) | Hub Dia (C) | Knurled Width (D) | Stud Length (E) | Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|---|
| SKS-011-S | WSS-011-S | 10-24 | 3/4 | 5/8 | 1/2 | 1/4 | 1/2 | 0.06 |
| SKSF-011-S | WSSF-011-S | 10-32 | 3/4 | 5/8 | 1/2 | 1/4 | 1/2 | 0.06 |
| SKS-012-S | WSS-012-S | 10-24 | 3/4 | 5/8 | 1/2 | 1/4 | 1 | 0.10 |
| SKSF-012-S | WSSF-012-S | 10-32 | 3/4 | 5/8 | 1/2 | 1/4 | 1 | 0.10 |
| SKS-013-S | WSS-013-S | 1/4-20 | 3/4 | 5/8 | 1/2 | 1/4 | 3/4 | 0.10 |
| SKSF-013-S | WSSF-013-S | 1/4-28 | 3/4 | 5/8 | 1/2 | 1/4 | 3/4 | 0.10 |
| SKS-014-S | WSS-014-S | 1/4-20 | 3/4 | 5/8 | 1/2 | 1/4 | 1 1/4 | 0.12 |
| SKSF-014-S | WSSF-014-S | 1/4-28 | 3/4 | 5/8 | 1/2 | 1/4 | 1 1/4 | 0.12 |
| SKS-015-S | WSS-015-S | 1/4-20 | 1 | 3/4 | 5/8 | 1/4 | 1 3/4 | 0.11 |
| SKSF-015-S | WSSF-015-S | 1/4-28 | 1 | 3/4 | 5/8 | 1/4 | 1 3/4 | 0.11 |
| SKS-016-S | WSS-016-S | 1/4-20 | 1 | 3/4 | 5/8 | 1/4 | 3 | 0.12 |

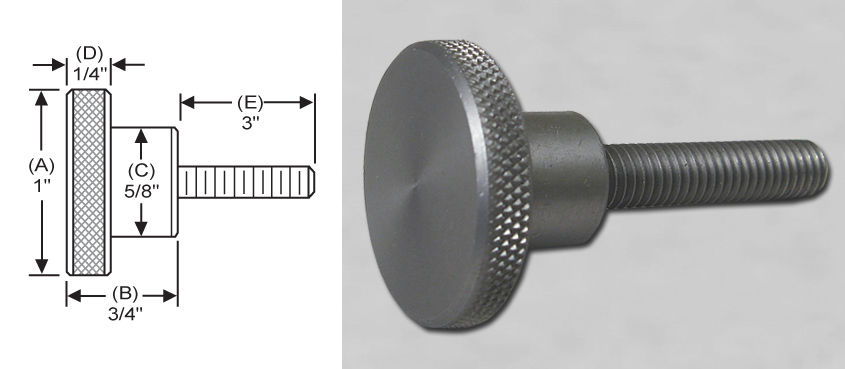

| SKSF-016-S | WSSF-016-S | 1/4-28 | 1 | 3/4 | 5/8 | 1/4 | 3 | 0.12 |
| SKS-017-S | WSS-017-S | 5/16-18 | 1 | 3/4 | 5/8 | 1/4 | 1 3/4 | 0.12 |

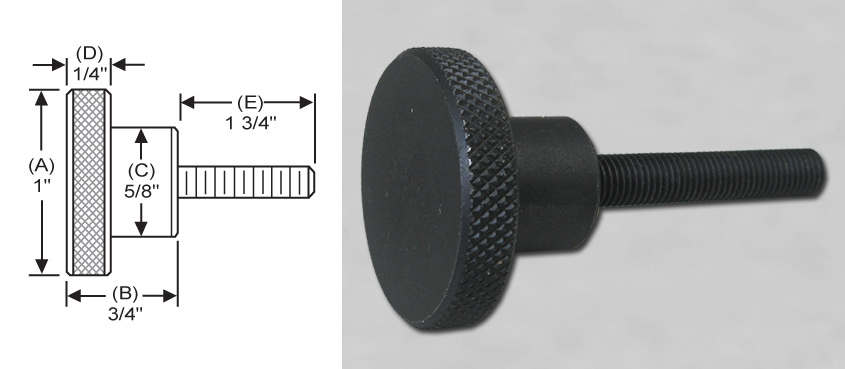

| SKSF-017-S | WSSF-017-S | 5/16-24 | 1 | 3/4 | 5/8 | 1/4 | 1 3/4 | 0.12 |
| SKS-018-S | WSS-018-S | 5/16-18 | 1 | 3/4 | 5/8 | 1/4 | 3 | 0.14 |
| SKSF-018-S | WSSF-018-S | 5/16-24 | 1 | 3/4 | 5/8 | 1/4 | 3 | 0.14 |
| SKS-019-S | WSS-019-S | 5/16-18 | 1 1/2 | 1 | 3/4 | 5/16 | 1 3/4 | 0.26 |
| SKSF-019-S | WSSF-019-S | 5/16-24 | 1 1/2 | 1 | 3/4 | 5/16 | 1 3/4 | 0.26 |
| SKS-021-S | WSS-021-S | 5/16-18 | 1 1/2 | 1 | 3/4 | 5/16 | 3 | 0.28 |

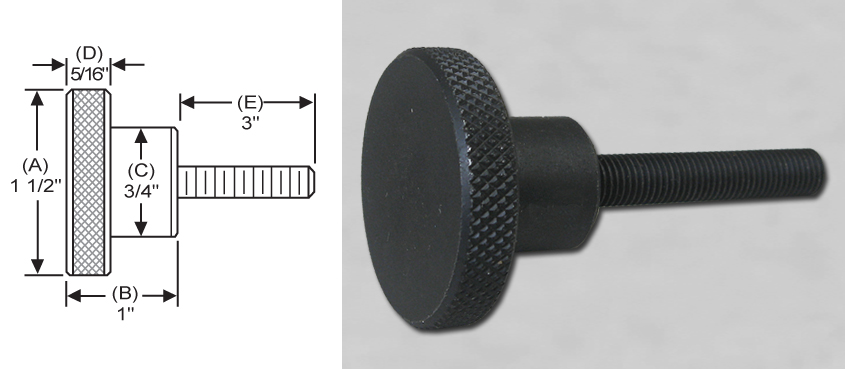

| SKSF-021-S | WSSF-021-S | 5/16-24 | 1 1/2 | 1 | 3/4 | 5/16 | 3 | 0.28 |
| SKS-022-S | WSS-022-S | 3/8-16 | 1 1/2 | 1 | 3/4 | 5/16 | 1 3/4 | 0.26 |
| SKSF-022-S | WSSF-022-S | 3/8-24 | 1 1/2 | 1 | 3/4 | 5/16 | 1 3/4 | 0.26 |
| SKS-023-S | WSS-023-S | 3/8-16 | 1 1/2 | 1 | 3/4 | 5/16 | 3 | 0.30 |
| SKSF-023-S | WSSF-023-S | 3/8-24 | 1 1/2 | 1 | 3/4 | 5/16 | 3 | 0.30 |
| SKS-024-S | WSS-024-S | 3/8-16 | 2 | 1 1/8 | 1 | 3/8 | 1 3/4 | 0.52 |
| SKSF-024-S | WSSF-024-S | 3/8-24 | 2 | 1 1/8 | 1 | 3/8 | 1 3/4 | 0.52 |
| SKS-025-S | WSS-025-S | 3/8-16 | 2 | 1 1/8 | 1 | 3/8 | 3 | 0.56 |
| SKSF-025-S | WSSF-025-S | 3/8-24 | 2 | 1 1/8 | 1 | 3/8 | 3 | 0.56 |
| SKS-026-S | WSS-026-S | 1/2-13 | 2 | 1 1/8 | 1 | 3/8 | 1 3/4 | 0.56 |
| SKSF-026-S | WSSF-026-S | 1/2-20 | 2 | 1 1/8 | 1 | 3/8 | 1 3/4 | 0.56 |
| SKS-027-S | WSS-027-S | 1/2-13 | 2 | 1 1/8 | 1 | 3/8 | 3 | 0.60 |
| SKSF-027-S | WSSF-027-S | 1/2-20 | 2 | 1 1/8 | 1 | 3/8 | 3 | 0.60 |
| SKS-028-S | WSS-028-S | 1/2-13 | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 1 3/4 | 1.30 |
| SKSF-028-S | WSSF-028-S | 1/2-20 | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 1 3/4 | 1.30 |
| SKF-029-S | WSS-029-S | 1/2-13 | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 3 | 1.34 |
| SKSF-029-S | WSSF-029-S | 1/2-20 | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 3 | 1.34 |
| SKF-031-S | WSS-031-S | 5/8-11 | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 1 3/4 | 1.34 |
| SKSF-031-S | WSSF-031-S | 5/8-18 | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 1 3/4 | 1.34 |
| SKF-032-S | WSS-032-S | 5/8-11 | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 3 | 1.38 |
| SKSF-032-S | WSSF-032-S | 5/8-18 | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 3 | 1.38 |
