The design of Type HP is based on hygienic construction, mounting flexibility and resistance towards exterior influences.
- Dimensions in inches

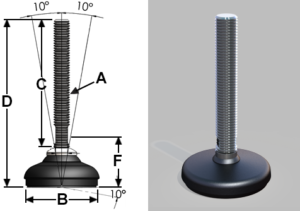

| Part # | Thread (A) | Base Dia. (B) | Thread Length (C) | Total Height (D) | Max. Height (E) | Min. Height (F) | Adjustment | Max Load (lbs) | Max Pull (lbs) | Slope (Degrees) |
|---|---|---|---|---|---|---|---|---|---|---|
| SW-60-12-30 | 1/2-13 | 2.36 | 3 | 4.23 | 3.78 | 1.63 | 3 | 3300 | 67 | 10 |
| SW-60-12-40 | 1/2-13 | 2.36 | 4 | 5.23 | 4.78 | 1.63 | 4 | 3300 | 67 | 10 |
| SW-60-58-30 | 5/8-11 | 2.36 | 3 | 4.23 | 3.67 | 1.63 | 3 | 3300 | 67 | 10 |
| SW-60-58-40 | 5/8-11 | 2.36 | 4 | 5.23 | 4.67 | 1.63 | 4 | 3300 | 67 | 10 |
