Steel and Stainless Steel Assembled Stud Knurled Control Knobs, Inch
Steel P/N | Stainless P/N | Thread Size | Knob Dia (A) | Total Length (B) | Hub Dia (C) | Knurled Width (D) | Stud Length (E) | Ship Wt (lbs) |
---|---|---|---|---|---|---|---|---|
SKS-011 | WSS-011 | 10-24 | 3/4 | 5/8 | 1/2 | 1/4 | 1/2 | 0.06 |

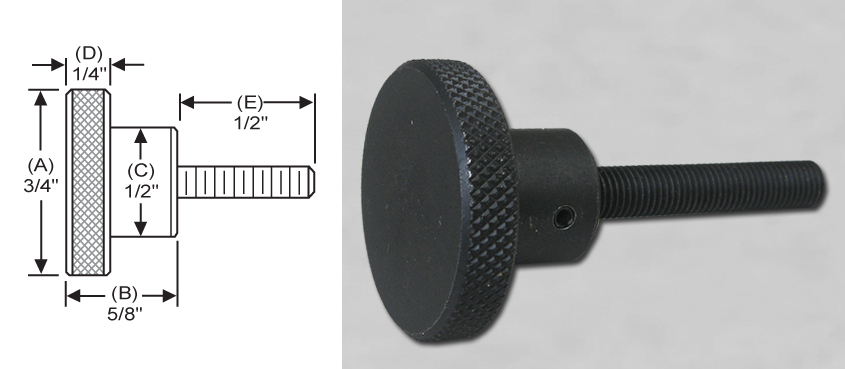

SKSF-011 | WSSF-011 | 10-32 | 3/4 | 5/8 | 1/2 | 1/4 | 1/2 | 0.06 |
SKS-012 | WSS-012 | 10-24 | 3/4 | 5/8 | 1/2 | 1/4 | 1 | 0.10 |
SKSF-012 | WSSF-012 | 10-32 | 3/4 | 5/8 | 1/2 | 1/4 | 1 | 0.10 |
SKS-013 | WSS-013 | 1/4-20 | 3/4 | 5/8 | 1/2 | 1/4 | 3/4 | 0.10 |
SKSF-013 | WSSF-013 | 1/4-28 | 3/4 | 5/8 | 1/2 | 1/4 | 3/4 | 0.10 |

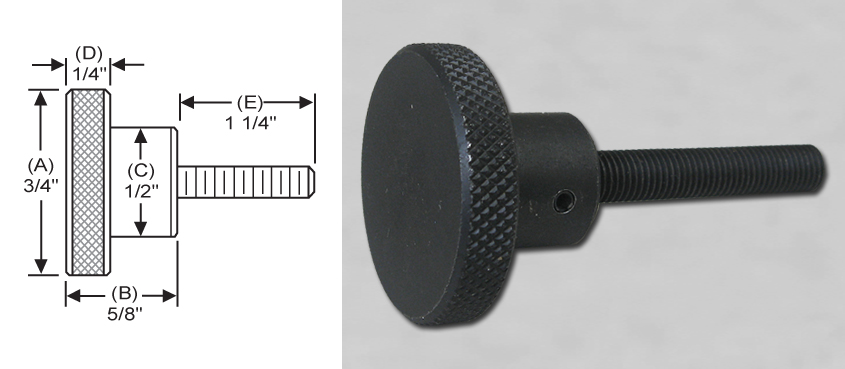

SKS-014 | WSS-014 | 1/4-20 | 3/4 | 5/8 | 1/2 | 1/4 | 1 1/4 | 0.12 |
SKSF-014 | WSSF-014 | 1/4-28 | 3/4 | 5/8 | 1/2 | 1/4 | 1 1/4 | 0.12 |
SKS-015 | WSS-015 | 1/4-20 | 1 | 3/4 | 5/8 | 1/4 | 1 3/4 | 0.11 |
SKSF-015 | WSSF-015 | 1/4-28 | 1 | 3/4 | 5/8 | 1/4 | 1 3/4 | 0.11 |
SKS-016 | WSS-016 | 1/4-20 | 1 | 3/4 | 5/8 | 1/4 | 3 | 0.12 |
SKSF-016 | WSSF-016 | 1/4-28 | 1 | 3/4 | 5/8 | 1/4 | 3 | 0.12 |

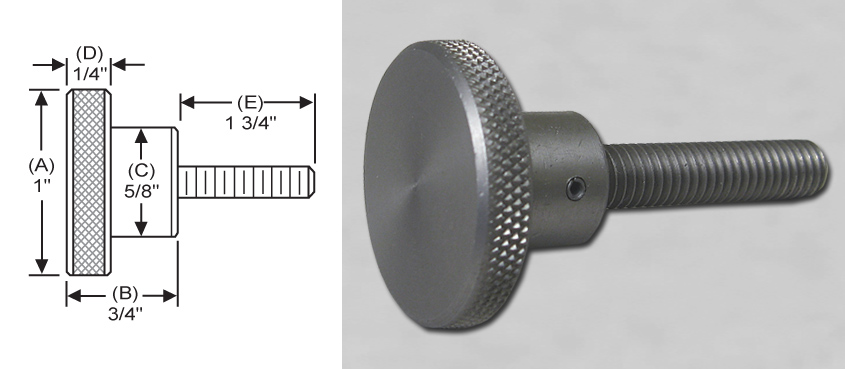

SKS-017 | WSS-017 | 5/16-18 | 1 | 3/4 | 5/8 | 1/4 | 1 3/4 | 0.12 |

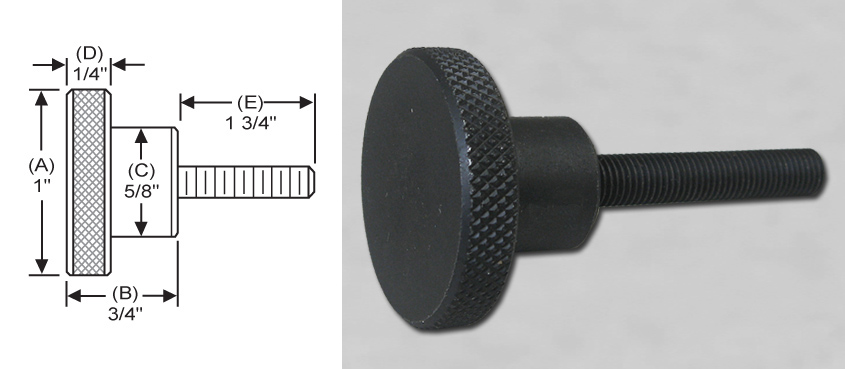

SKSF-017 | WSSF-017 | 5/16-24 | 1 | 3/4 | 5/8 | 1/4 | 1 3/4 | 0.12 |

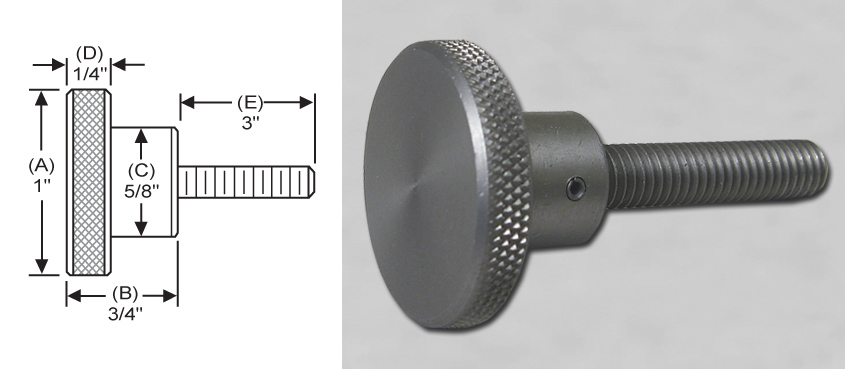

SKS-018 | WSS-018 | 5/16-18 | 1 | 3/4 | 5/8 | 1/4 | 3 | 0.14 |

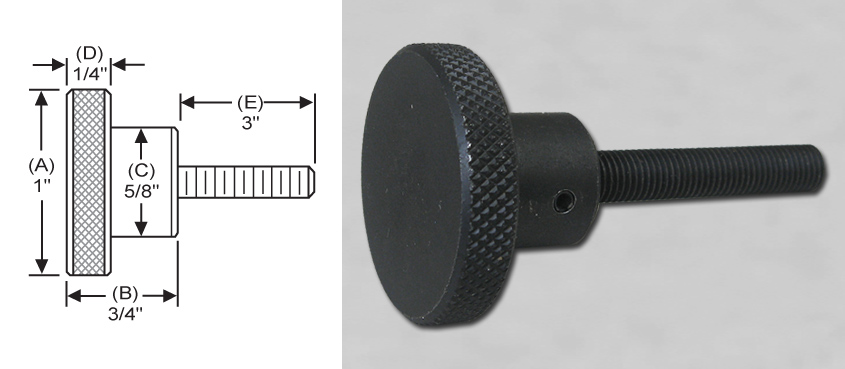

SKSF-018 | WSSF-018 | 5/16-24 | 1 | 3/4 | 5/8 | 1/4 | 3 | 0.14 |
SKS-019 | WSS-019 | 5/16-18 | 1 1/2 | 1 | 3/4 | 5/16 | 1 3/4 | 0.26 |
SKSF-019 | WSSF-019 | 5/16-24 | 1 1/2 | 1 | 3/4 | 5/16 | 1 3/4 | 0.26 |
SKS-021 | WSS-021 | 5/16-18 | 1 1/2 | 1 | 3/4 | 5/16 | 3 | 0.28 |
SKSF-021 | WSSF-021 | 5/16-24 | 1 1/2 | 1 | 3/4 | 5/16 | 3 | 0.28 |
SKS-022 | WSS-022 | 3/8-16 | 1 1/2 | 1 | 3/4 | 5/16 | 1 3/4 | 0.26 |

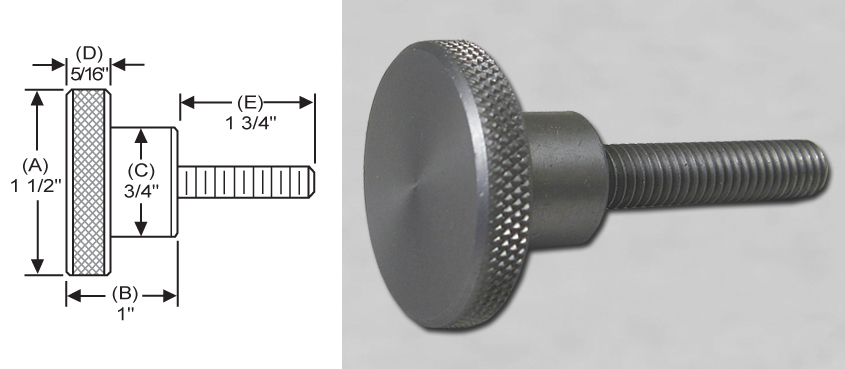

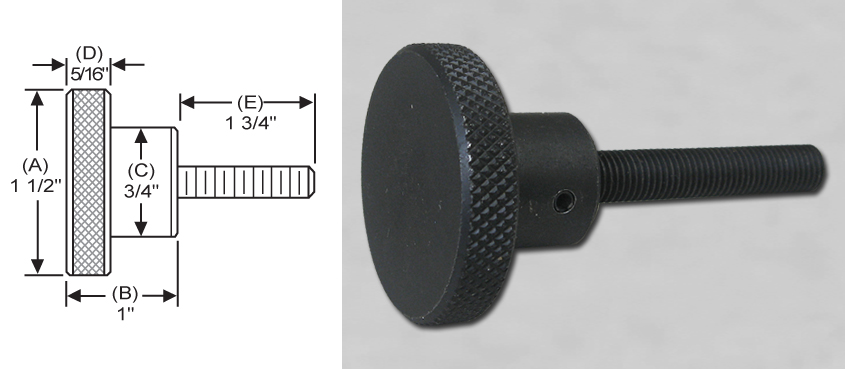

SKSF-022 | WSSF0-22 | 3/8-24 | 1 1/2 | 1 | 3/4 | 5/16 | 1 3/4 | 0.26 |
SKS-023 | WSS-023 | 3/8-16 | 1 1/2 | 1 | 3/4 | 5/16 | 3 | 0.30 |
SKSF-023 | WSSF-023 | 3/8-24 | 1 1/2 | 1 | 3/4 | 5/16 | 3 | 0.30 |
SKS-024 | WSS-024 | 3/8-16 | 2 | 1 1/8 | 1 | 3/8 | 1 3/4 | 0.52 |
SKSF-024 | WSSF-024 | 3/8-24 | 2 | 1 1/8 | 1 | 3/8 | 1 3/4 | 0.52 |
SKS-025 | WSS-025 | 3/8-16 | 2 | 1 1/8 | 1 | 3/8 | 3 | 0.56 |
SKSF-025 | WSSF-025 | 3/8-24 | 2 | 1 1/8 | 1 | 3/8 | 3 | 0.56 |

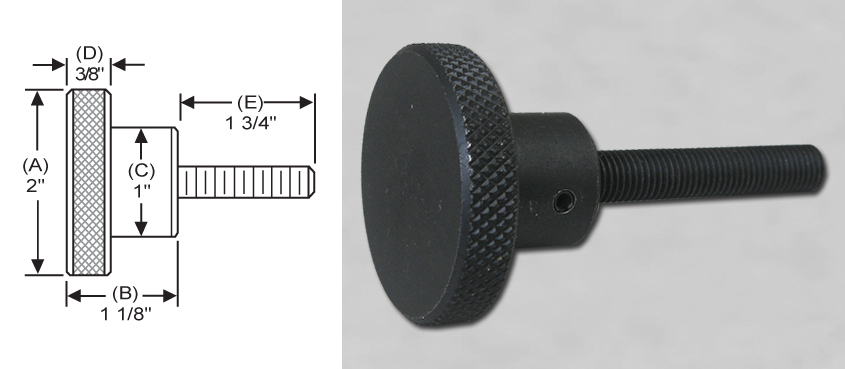

SKS-026 | WSS-026 | 1/2-13 | 2 | 1 1/8 | 1 | 3/8 | 1 3/4 | 0.56 |
SKSF-026 | WSSF-026 | 1/2-20 | 2 | 1 1/8 | 1 | 3/8 | 1 3/4 | 0.56 |
SKS-027 | WSS-027 | 1/2-13 | 2 | 1 1/8 | 1 | 3/8 | 3 | 0.60 |
SKSF-027 | WSSF-027 | 1/2-20 | 2 | 1 1/8 | 1 | 3/8 | 3 | 0.60 |
SKS-028 | WSS-028 | 1/2-13 | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 1 3/4 | 1.30 |
SKSF-028 | WSSF-028 | 1/2-20 | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 1 3/4 | 1.30 |
SKF-029 | WSS-029 | 1/2-13 | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 3 | 1.34 |
SKSF-029 | WSSF-029 | 1/2-20 | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 3 | 1.34 |

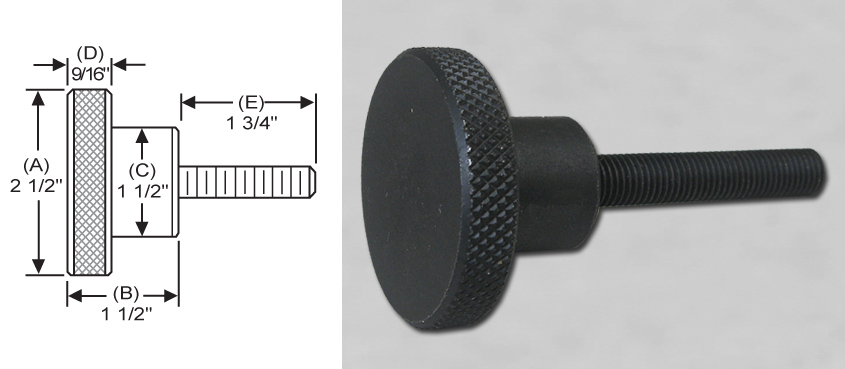

SKF-031 | WSS-031 | 5/8-11 | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 1 3/4 | 1.34 |
SKSF-031 | WSSF-031 | 5/8-18 | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 1 3/4 | 1.34 |
SKF-032 | WSS-032 | 5/8-11 | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 3 | 1.38 |
SKSF-032 | WSSF-032 | 5/8-18 | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 3 | 1.38 |
