- Locking L-Handle Spring Plungers
- Steel and Stainless Steel
| Steel P/N | 303 Stainless P/N | 316 Stainless P/N | Thread (A) | Thread Length (H) | Body Length (B) | Nose Length (C) | Nose Dia (D) | Hex Size (E) | Handle Length (F) | Handle Dia (G) | Thread Relief (I) | Start End Force (lbs) | Final End Force (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LL-0 | LLS-0 | LLS-0-316 | 1/4-20 | 0.50 | 0.75 | 0.20 | 0.16 | 1/4 | 0.40 | 0.09 | – | 0.12 | 0.5 |
| LL-1 | LLS-1 | LLS-1-316 | 1/4-20 | 0.80 | 1.25 | 0.38 | 0.16 | 1/4 | 0.50 | 0.09 | – | 0.5 | 2.5 |

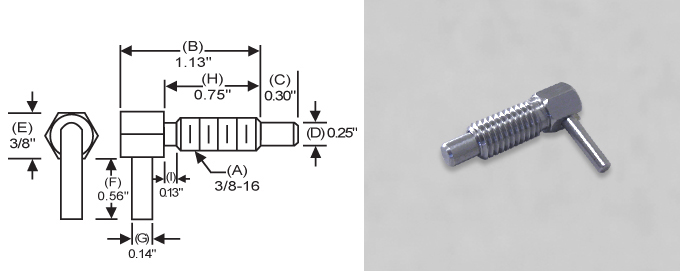

| LL-2 | LLS-2 | LLS-2-316 | 3/8-16 | 0.75 | 1.13 | 0.30 | 0.25 | 3/8 | 0.56 | 0.14 | 0.13 | 0.25 | 1.25 |
| LL-3 | LLS-3 | LLS-3-316 | 3/8-16 | 1.31 | 2.00 | 0.56 | 0.25 | 3/8 | 0.75 | 0.14 | 0.13 | 0.75 | 3.75 |
| LL-4 | LLS-4 | LLS-4-316 | 1/2-13 | 1.00 | 1.50 | 0.40 | 0.31 | 1/2 | 0.75 | 0.19 | 0.13 | 0.5 | 2 |
| LL-5 | LLS-5 | LLS-5-316 | 1/2-13 | 1.25 | 2.11 | 0.75 | 0.31 | 1/2 | 1.00 | 0.19 | 0.13 | 1 | 5 |
| LL-6 | LLS-6 | LLS-6-316 | 5/8-11 | 1.25 | 1.88 | 0.50 | 0.38 | 5/8 | 0.88 | 0.19 | 0.13 | 0.75 | 2.5 |
| LL-7 | LLS-7 | LLS-7-316 | 5/8-11 | 2.00 | 3.05 | 1.00 | 0.38 | 5/8 | 1.00 | 0.19 | 0.13 | 1 | 5 |
