- Non-Locking L-Handle Spring Plungers
- Steel and Stainless Steel
- Nylon Patch
- Also available with nylon pellet
Steel P/N | 303 Stainless P/N | 316 Stainless P/N | Nylon Nose P/N | Thread (A) | Thread Length (H) | Body Length (B) | Nose Length (C) | Nose Dia (D) | Hex Size (E) | Handle Length (F) | Handle Dia (G) | Thread Relief (I) | Start End Force (lbs) | Final End Force (lbs) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LNW-0 | SLNW-0 | SLNW-0-316 | NLNW-0 | 1/4-20 | 0.50 | 0.75 | 0.20 | 0.16 | 1/4 | 0.40 | 0.09 | – | 0.12 | 0.5 |
LNW-1 | SLNW-1 | SLNW-1-316 | NLNW-1 | 1/4-20 | 0.80 | 1.25 | 0.38 | 0.16 | 1/4 | 0.50 | 0.09 | – | 0.5 | 2.5 |

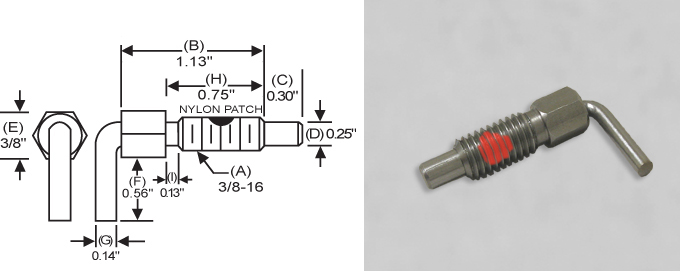

LNW-2 | SLNW-2 | SLNW-2-316 | NLNW-2 | 3/8-16 | 0.75 | 1.13 | 0.30 | 0.25 | 3/8 | 0.56 | 0.14 | 0.13 | 0.25 | 1.25 |
LNW-3 | SLNW-3 | SLNW-3-316 | NLNW-3 | 3/8-16 | 1.31 | 2.00 | 0.56 | 0.25 | 3/8 | 0.75 | 0.14 | 0.13 | 0.75 | 3.75 |

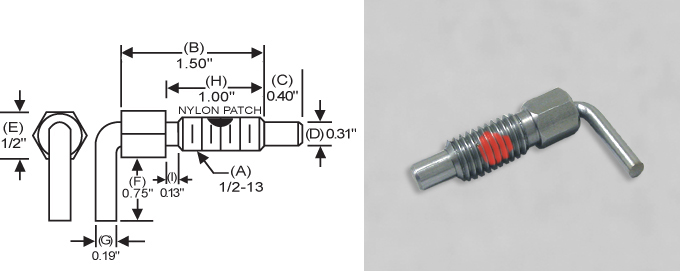

LNW-4 | SLNW-4 | SLNW-4-316 | NLNW-4 | 1/2-13 | 1.00 | 1.50 | 0.40 | 0.31 | 1/2 | 0.75 | 0.19 | 0.13 | 0.5 | 2 |
LNW-5 | SLNW-5 | SLNW-5-316 | NLNW-5 | 1/2-13 | 1.25 | 2.11 | 0.75 | 0.31 | 1/2 | 1.00 | 0.19 | 0.13 | 1 | 5 |

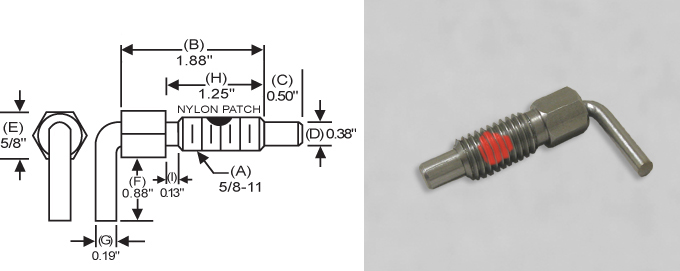

LNW-6 | SLNW-6 | SLNW-6-316 | NLNW-6 | 5/8-11 | 1.25 | 1.88 | 0.50 | 0.38 | 5/8 | 0.88 | 0.19 | 0.13 | 0.75 | 2.5 |

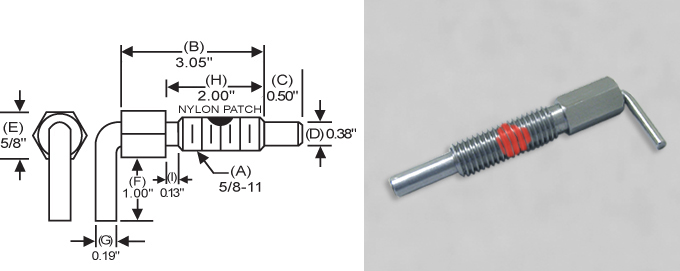

LNW-7 | SLNW-7 | SLNW-7-316 | NLNW-7 | 5/8-11 | 2.00 | 3.05 | 1.00 | 0.38 | 5/8 | 1.00 | 0.19 | 0.13 | 1 | 5 |
