Low Profile (Delrin® – Standard base, Inch)

  • Delrin® Base
  • Steel and Stainless Steel
  • Stud Style
  • Inch

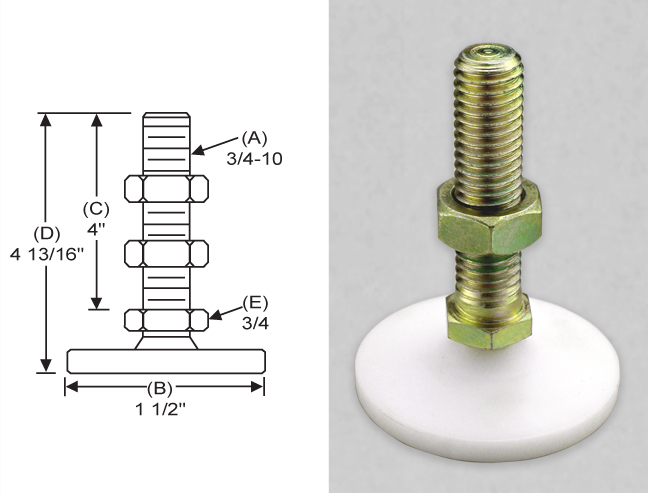

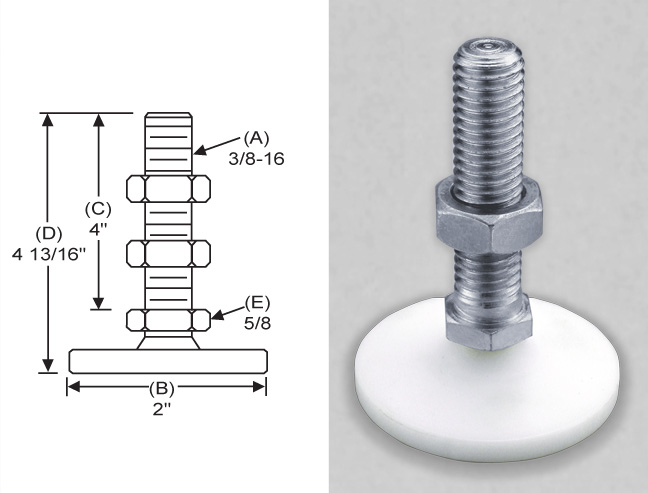

Steel P/N Stainless P/N Thread (A) Base Dia (B) Thread Length (C) Total Height (D) Max Load (lbs) Hex Size (E) Ship Wt (lbs)
DLP0-AA2 SDLP0-AA2 1/4-20 1 1/2 2 2 13/16 225 5/8 0.06
DLP0-AA4 SDLP0-AA4 1/4-20 1 1/2 4 4 13/16 225 5/8 0.08
DLP0-A2 SDLP0-A2 3/8-16 1 1/2 2 2 13/16 250 5/8 0.10
DLP0-A4 SDLP0-A4 3/8-16 1 1/2 4 4 13/16 250 5/8 0.12
DLP0-B2 SDLP0-B2 1/2-13 1 1/2 2 2 13/16 250 5/8 0.14
DLP0-B4 SDLP0-B4 1/2-13 1 1/2 4 4 13/16 250 5/8 0.22
DLP0-C2 SDLP0-C2 5/8-11 1 1/2 2 2 13/16 250 5/8 0.18
DLP0-C4 SDLP0-C4 5/8-11 1 1/2 4 4 13/16 250 5/8 0.28
DLP0-D2 SDLP0-D2 3/4-10 1 1/2 2 2 13/16 250 3/4 0.26
DLP0-D4 SDLP0-D4 3/4-10 1 1/2 4 4 13/16 250 3/4 0.46
DLP1-AA2 SDLP1-AA2 1/4-20 2 2 2 13/16 225 5/8 0.08
DLP1-AA4 SDLP1-AA4 1/4-20 2 4 4 13/16 225 5/8 0.10
DLP1-A2 SDLP1-A2 3/8-16 2 2 2 13/16 250 5/8 0.12
DLP1-A4 SDLP1-A4 3/8-16 2 4 4 13/16 250 5/8 0.14
DLP1-B2 SDLP1-B2 1/2-13 2 2 2 13/16 250 5/8 0.16
DLP1-B4 SDLP1-B4 1/2-13 2 4 4 13/16 250 5/8 0.24
DLP1-C2 SDLP1-C2 5/8-11 2 2 2 13/16 250 5/8 0.20
DLP1-C4 SDLP1-C4 5/8-11 2 4 4 13/16 250 5/8 0.30
DLP1-D2 SDLP1-D2 3/4-10 2 2 2 13/16 250 3/4 0.28
DLP1-D4 SDLP1-D4 3/4-10 2 4 4 13/16 250 3/4 0.48
DLP2-AA2 SDLP2-AA2 1/4-20 2 1/2 2 2 13/16 225 5/8 0.12
DLP2-AA4 SDLP2-AA4 1/4-20 2 1/2 4 4 13/16 225 5/8 0.14
DLP2-A2 SDLP2-A2 3/8-16 2 1/2 2 2 13/16 350 5/8 0.16
DLP2-A4 SDLP2-A4 3/8-16 2 1/2 4 4 13/16 350 5/8 0.18
DLP2-B2 SDLP2-B2 1/2-13 2 1/2 2 2 13/16 350 5/8 0.20
DLP2-B4 SDLP2-B4 1/2-13 2 1/2 4 4 13/16 350 5/8 0.28
DLP2-C2 SDLP2-C2 5/8-11 2 1/2 2 2 13/16 350 5/8 0.24
DLP2-C4 SDLP2-C4 5/8-11 2 1/2 4 4 13/16 350 5/8 0.34
DLP2-D2 SDLP2-D2 3/4-10 2 1/2 2 2 13/16 350 3/4 0.32
DLP2-D4 SDLP2-D4 3/4-10 2 1/2 4 4 13/16 350 3/4 0.52
