- Delrin® Base
- Steel, 303 Stainless Steel and 316 Stainless Steel
- Tapped Style
- Swivel
- Inch
| Steel P/N | 303 Stainless P/N | 316 Stainless P/N | Thread (A) | Base Dia(B) | Total Height (D) | Max Load (lbs) | Hex Size (E) | Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|---|
| DTS-00 | SDTS-00 | SDTS-00-316 | 10-32 | 3/4 | 1/2 | 150 | 3/8 | 0.02 |
| DTS-0 | SDTS-0 | SDTS-0-316 | 1/4-20 | 1 | 11/16 | 200 | 1/2 | 0.02 |
| DTS-0A | SDTS-0A | SDTS-0A-316 | 1/4-28 | 1 | 11/16 | 125 | 1/2 | 0.04 |
| DTS-100 | SDTS-100 | SDTS-100-316 | 5/16-18 | 1 1/4 | 7/8 | 250 | 5/8 | 0.06 |
| DTS-101 | SDTS-101 | SDTS-101-316 | 5/16-24 | 1 1/4 | 7/8 | 200 | 5/8 | 0.06 |
| DTS-1 | SDTS-1 | SDTS-1-316 | 3/8-16 | 1 1/4 | 7/8 | 300 | 5/8 | 0.06 |
| DTS-1A | SDTS-1A | SDTS-1A-316 | 3/8-24 | 1 1/4 | 7/8 | 250 | 5/8 | 0.06 |
| DTS-2 | SDTS-2 | SDTS-2-316 | 1/2-13 | 1 7/8 | 1 1/8 | 700 | 3/4 | 0.10 |
| DTS-2A | SDTS-2A | SDTS-2A-316 | 1/2-20 | 1 7/8 | 1 1/8 | 625 | 3/4 | 0.10 |
| DTS-3 | SDTS-3 | SDTS-3-316 | 5/8-11 | 2 1/2 | 1 1/4 | 1200 | 7/8 | 0.20 |
| DTS-3A | SDTS-3A | SDTS-3A-316 | 5/8-18 | 2 1/2 | 1 1/4 | 1100 | 7/8 | 0.20 |
| DTS-4 | SDTS-4 | SDTS-4-316 | 3/4-10 | 3 | 1 1/2 | 1800 | 1 1/16 | 0.36 |
| DTS-4A | SDTS-4A | SDTS-4A-316 | 3/4-16 | 3 | 1 1/2 | 1650 | 1 1/16 | 0.36 |
| DTS-5 | SDTS-5 | SDTS-5-316 | 1-8 | 4 | 1 7/8 | 2400 | 1 3/8 | 0.72 |
| DTS-5A | SDTS-5A | SDTS-5A-316 | 7/8-14 | 4 | 1 7/8 | 1950 | 1 3/8 | 0.74 |
| DTS-5B | SDTS-5B | SDTS-5B-316 | 7/8-9 | 4 | 1 7/8 | 1700 | 1 3/8 | 0.74 |

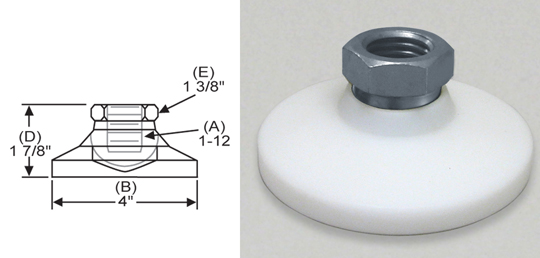

| DTS-5C | SDTS-5C | SDTS-5C-316 | 1-12 | 4 | 1 7/8 | 2250 | 1 3/8 | 0.72 |
| DTS-6 | SDTS-6 | SDTS-6-316 | 1 1/4-7 | 6 | 2 3/4 | 3600 | 1 7/8 | 1.84 |
