Stainless Steel & Delrin Smooth Toggle & Swivel Pads, Inch

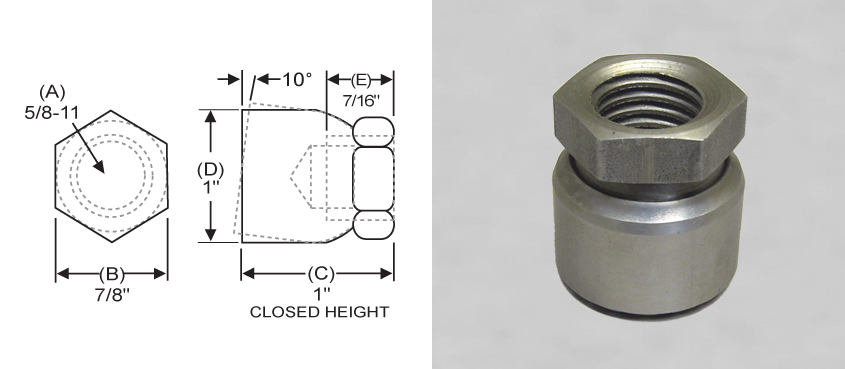

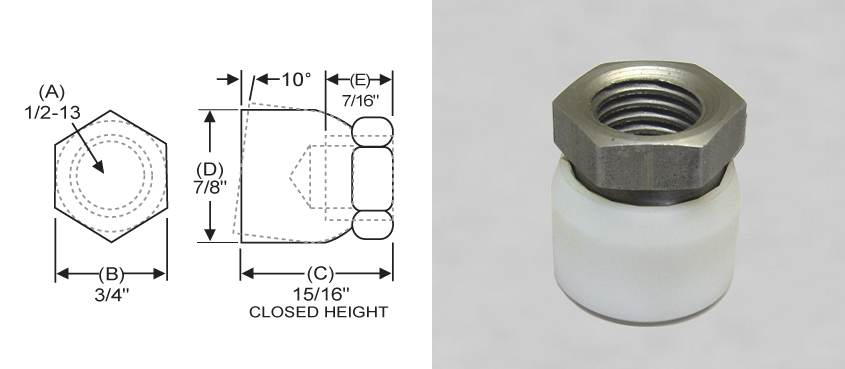

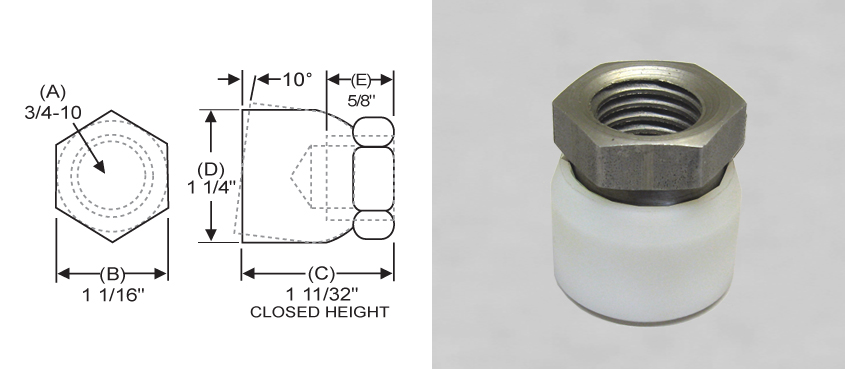

Steel Pad P/N | Delrin® Pad P/N | Thread (A) | Max Load Stainless Pad (lbs) | Max Load Delrin® Pad (lbs) | Hex Size (B) | Closed Height (C) | Pad Dia (D) | Thread Depth (E) |
---|---|---|---|---|---|---|---|---|
SP-1S | SP-1SD | 1/4-20 | 5,000 | 360 | 1/2 | 5/8 | 5/8 | 5/16 |
SP-2S | SP-2SD | 5/16-18 | 7,600 | 360 | 9/16 | 3/4 | 11/16 | 3/8 |
SP-3S | SP-3SD | 3/8-16 | 8,250 | 570 | 5/8 | 13/16 | 3/4 | 3/8 |
SP-4S | SP-4SD | 1/2-13 | 9,000 | 570 | 3/4 | 15/16 | 7/8 | 7/16 |
SP-5S | SP-5SD | 5/8-11 | 12,900 | 1,000 | 7/8 | 1 | 1 | 7/16 |
SP-6S | SP-6SD | 3/4-10 | 17,400 | 1,300 | 1 1/16 | 1 11/32 | 1 1/4 | 5/8 |
SP-7S | SP-7SD | 1-8 | 24,200 | 1,570 | 1 3/8 | 1 53/64 | 1 5/8 | 13/16 |
