- Steel and Stainless Steel
- Stud Style
- Swivel
- Metric

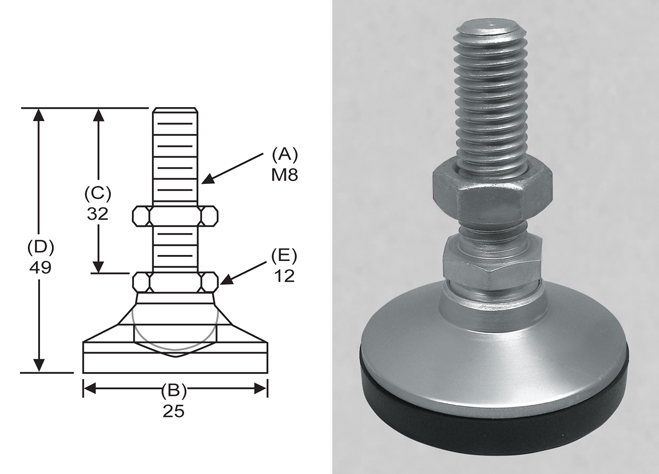

| Steel P/N | Stainless P/N | Thread (A) | Base Dia (B) | Thread Length (C) | Total Height (D) | Max Load (kg) | Hex Size (E) | Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|---|
| MSL-0B | MSSL-0B | M8 | 25 | 32 | 49 | 340 | 12 | 0.10 |
| MSL-1B | MSSL-1B | M10 | 32 | 51 | 73 | 1270 | 16 | 0.22 |
| MSL-2B | MSSL-2B | M12 | 48 | 51 | 79 | 1700 | 20 | 0.48 |
| MSL-3B | MSSL-3B | M16 | 64 | 51 | 83 | 2045 | 22 | 1.06 |
| MSL-4B | MSSL-4B | M20 | 76 | 51 | 89 | 2520 | 27 | 1.70 |
