- Delrin® Base
- Steel, 303 Stainless Steel and 316 Stainless Steel
- Stud Style
- Swivel
- Metric
| Steel P/N | 303 Stainless P/N | 316 Stainless P/N | Thread (A) | Base Dia (B) | Thread Length (C) | Total Height (D) | Max Load (kg) | Hex Size (E) | Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| MS-WD00 | SMS-WD00 | SMS-WD00-316 | M6 | 19 | 25 | 38 | 68 | 10 | 0.02 |
| MS-WD0 | SMS-WD0 | SMS-WD0-316 | M8 | 25 | 32 | 49 | 91 | 12 | 0.06 |
| MS-WD1 | SMS-WD1 | SMS-WD1-316 | M10 | 32 | 51 | 73 | 136 | 16 | 0.12 |
| MS-WD2 | SMS-WD2 | SMS-WD2-316 | M12 | 48 | 51 | 79 | 318 | 20 | 0.24 |
| MS-WD3 | SMS-WD3 | SMS-WD3-316 | M16 | 64 | 51 | 83 | 544 | 22 | 0.40 |
| MS-WD4 | SMS-WD4 | SMS-WD4-316 | M20 | 76 | 51 | 89 | 818 | 27 | 0.72 |

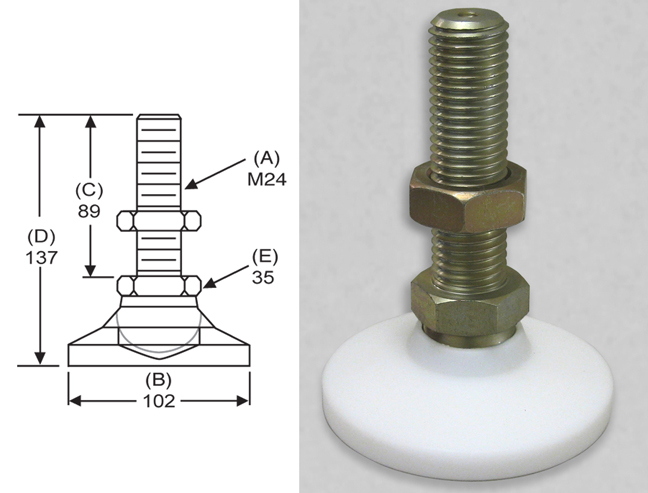

| MS-WD5 | SMS-WD5 | SMS-WD5-316 | M24 | 102 | 89 | 137 | 1090 | 35 | 1.70 |
| MS-WD6 | SMS-WD6 | SMS-WD6-316 | M30 | 152 | 102 | 172 | 1636 | 48 | 3.68 |
