| S&W P/N | Thread (A) | Thread Pitch (A) | Short (C) | Long (D) |
|---|---|---|---|---|
| SBETS-025-15 | 1/4-20 | 1-1/2 | 3/8 | 7/8 |
| SBETS-025-20 | 1/4-20 | 2 | 3/8 | 1 |
| SBETS-025-25 | 1/4-20 | 2-1/2 | 3/8 | 1 |
| SBETS-025-30 | 1/4-20 | 3 | 3/8 | 1-1/2 |
| SBETS-025-40 | 1/4-20 | 4 | 3/8 | 1-3/4 |
| SBETS-025-50 | 1/4-20 | 5 | 3/8 | 1-3/4 |
| SBETS-025-60 | 1/4-20 | 6 | 3/8 | 2 |
| SBETS-025-70 | 1/4-20 | 7 | 3/8 | 2 |
| SBETS-025-80 | 1/4-20 | 8 | 3/8 | 2-1/2 |
| SBETS-031-15 | 5/16-18 | 1-1/2 | 1/2 | 3/4 |
| SBETS-031-20 | 5/16-18 | 2 | 1/2 | 1 |
| SBETS-031-25 | 5/16-18 | 2-1/2 | 1/2 | 1 |
| SBETS-031-30 | 5/16-18 | 3 | 1/2 | 1-1/2 |
| SBETS-031-40 | 5/16-18 | 4 | 1/2 | 1-1/2 |
| SBETS-031-50 | 5/16-18 | 5 | 1/2 | 1-3/4 |
| SBETS-031-60 | 5/16-18 | 6 | 1/2 | 2 |
| SBETS-031-70 | 5/16-18 | 7 | 1/2 | 2 |
| SBETS-031-80 | 5/16-18 | 8 | 1/2 | 2-1/2 |
| SBETS-038-15 | 3/8-16 | 1-1/2 | 5/8 | 5/8 |
| SBETS-038-20 | 3/8-16 | 2 | 5/8 | 1 |
| SBETS-038-30 | 3/8-16 | 3 | 5/8 | 1-1/2 |
| SBETS-038-40 | 3/8-16 | 4 | 5/8 | 1-1/2 |
| SBETS-038-50 | 3/8-16 | 5 | 5/8 | 1-3/4 |

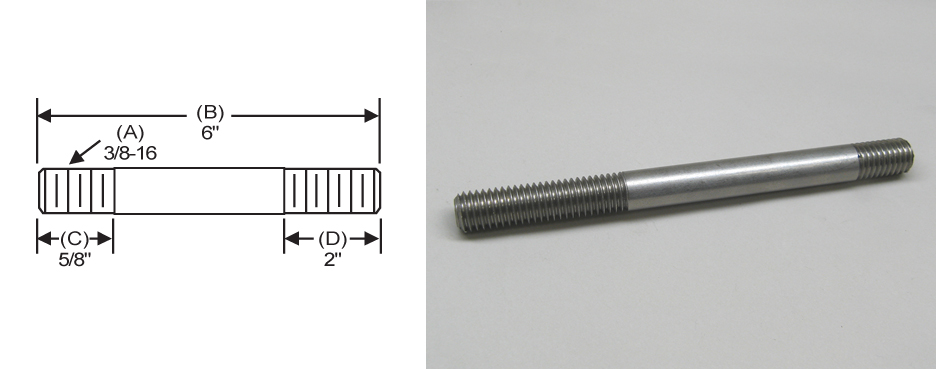

| SBETS-038-60 | 3/8-16 | 6 | 5/8 | 2 |
| SBETS-038-80 | 3/8-16 | 8 | 5/8 | 2-1/2 |
| SBETS-050-15 | 1/2-13 | 1-1/2 | 5/8 | 5/8 |
| SBETS-050-20 | 1/2-13 | 2 | 5/8 | 1 |
| SBETS-050-30 | 1/2-13 | 3 | 3/4 | 1-1/2 |
| SBETS-050-40 | 1/2-13 | 4 | 3/4 | 1-1/2 |
| SBETS-050-50 | 1/2-13 | 5 | 3/4 | 1-3/4 |
| SBETS-050-55 | 1/2-13 | 5-1/2 | 3/4 | 1-3/4 |
| SBETS-050-60 | 1/2-13 | 6 | 3/4 | 2 |
| SBETS-050-65 | 1/2-13 | 6-1/2 | 3/4 | 2 |
| SBETS-050-70 | 1/2-13 | 7 | 3/4 | 2 |
| SBETS-050-80 | 1/2-13 | 8 | 3/4 | 2-1/2 |
| SBETS-050-90 | 1/2-13 | 9 | 3/4 | 2-1/2 |
| SBETS-050-100 | 1/2-13 | 10 | 3/4 | 3 |
| SBETS-050-120 | 1/2-13 | 12 | 3/4 | 3 |
| SBETS-063-20 | 5/8-11 | 2 | 5/8 | 7/8 |
| SBETS-063-25 | 5/8-11 | 2-1/2 | 7/8 | 1 |
| SBETS-063-30 | 5/8-11 | 3 | 7/8 | 1-1/2 |
| SBETS-063-40 | 5/8-11 | 4 | 7/8 | 1-3/4 |
| SBETS-063-50 | 5/8-11 | 5 | 7/8 | 1-3/4 |
| SBETS-063-55 | 5/8-11 | 5-1/2 | 7/8 | 2 |
| SBETS-063-60 | 5/8-11 | 6 | 7/8 | 2 |
| SBETS-063-65 | 5/8-11 | 6-1/2 | 7/8 | 2 |
| SBETS-063-70 | 5/8-11 | 7 | 7/8 | 2 |
| SBETS-063-80 | 5/8-11 | 8 | 7/8 | 2-1/2 |
| SBETS-063-90 | 5/8-11 | 9 | 7/8 | 2-1/2 |
| SBETS-063-100 | 5/8-11 | 10 | 7/8 | 2-1/2 |
| SBETS-063-120 | 5/8-11 | 12 | 7/8 | 3 |
| SBETS-063-140 | 5/8-11 | 14 | 7/8 | 3 |
| SBETS-075-30 | 3/4-10 | 3 | 1 | 1-1/2 |
| SBETS-075-40 | 3/4-10 | 4 | 1 | 1-3/4 |
| SBETS-075-50 | 3/4-10 | 5 | 1 | 1-3/4 |
| SBETS-075-60 | 3/4-10 | 6 | 1 | 2 |
| SBETS-075-70 | 3/4-10 | 7 | 1 | 2 |
| SBETS-075-80 | 3/4-10 | 8 | 1 | 2-1/2 |
| SBETS-075-90 | 3/4-10 | 9 | 1 | 2-1/2 |
| SBETS-075-100 | 3/4-10 | 10 | 1 | 2-1/2 |
| SBETS-075-120 | 3/4-10 | 12 | 1 | 3 |
| SBETS-075-140 | 3/4-10 | 14 | 1 | 3 |
| SBETS-088-30 | 7/8-9 | 3 | 1-1/4 | 1 |
| SBETS-088-40 | 7/8-9 | 4 | 1-1/4 | 1-3/4 |
| SBETS-088-50 | 7/8-9 | 5 | 1-1/4 | 1-3/4 |
| SBETS-088-60 | 7/8-9 | 6 | 1-1/4 | 2 |

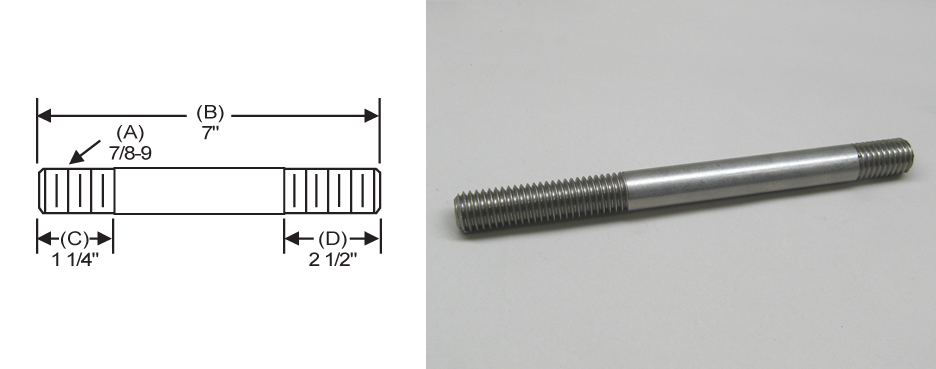

| SBETS-088-70 | 7/8-9 | 7 | 1-1/4 | 2-1/2 |
| SBETS-088-80 | 7/8-9 | 8 | 1-1/4 | 2-1/2 |
| SBETS-088-90 | 7/8-9 | 9 | 1-1/4 | 3 |
| SBETS-088-100 | 7/8-9 | 10 | 1-1/4 | 3 |
| SBETS-088-120 | 7/8-9 | 12 | 1-1/4 | 3 |
| SBETS-100-40 | 1-8 | 4 | 1-1/2 | 1-3/4 |
| SBETS-100-50 | 1-8 | 5 | 1-1/2 | 1-3/4 |
| SBETS-100-60 | 1-8 | 6 | 1-1/2 | 2 |
| SBETS-100-80 | 1-8 | 8 | 1-1/2 | 2-1/2 |
| SBETS-100-120 | 1-8 | 12 | 1-1/2 | 3 |
