Toggle Pads – Smooth Pad, Steel Body

Steel & Delrin Smooth Toggle & Swivel Pads, Inch

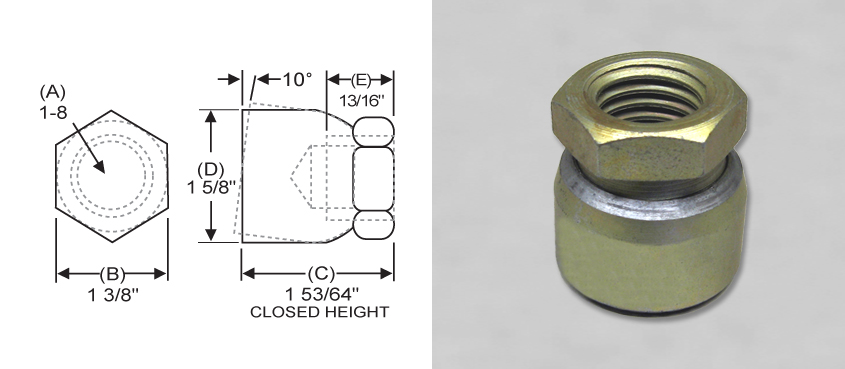

Steel Body and Pad P/N Steel Body and Delrin® Pad P/N Thread (A) Max Load Steel Pads (lbs) Max load Delrin® Pads (lbs) Hex Size (B) Closed Height (C) Pad Dia (D) Thread Depth (E)
SP-1 SP-1D 1/4-20 3,900 360 1/2 5/8 5/8 5/16
SP-2 SP-2D 5/16-18 5,900 360 9/16 3/4 11/16 3/8
SP-3 SP-3D 3/8-16 6,400 570 5/8 13/16 3/4 3/8
SP-4 SP-4D 1/2-13 7,000 570 3/4 15/16 7/8 7/16
SP-5 SP-5D 5/8-11 10,000 1,000 7/8 1 1 7/16
SP-6 SP-6D 3/4-10 13,500 1,300 1 1/16 1 11/32 1 1/4 5/8
SP-7 SP-7D 1-8 18,750 1,570 1 3/8 1 53/64 1 5/8 13/16
