Ball Plunger – Brass & 316 Stainless Steel Inch

  • Brass & 316 Stainless Steel Body
  • Brass & 316 Stainless Steel Nose

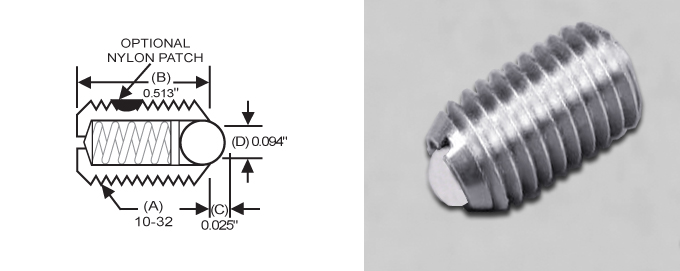

  • Add “P” to end of part number for optional nylon patch. Do not use the nylon patch if threading into soft material such as aluminum.
  • Add “PT” for nylon pellet.
Brass Nose P/N 316 Stainless Nose P/N Thread (A) Body Length (B) Nose Length (C) Nose Dia (D) Start End Force (lbs) End End Force (lbs)
SWB10-11B SSW10-11B-316 4-48 0.187 0.020 0.062 0.125 0.5
SWB10-12B SSW10-12B-316 5-40 0.250 0.020 0.062 0.25 0.75
SWB10-1B SSW10-1B-316 6-40 0.312 0.023 0.078 0.5 1.0
SWB10-22B SSW10-22B-316 8-32 0.344 0.025 0.094 0.5 1.25
SWB10-2B SSW10-2B-316 8-36 0.344 0.025 0.094 0.5 1.25
SWB10-3B SSW10-3B-316 10-32 0.513 0.025 0.094 1.5 3.0
SWB10-3BL SSW10-3BL-316 10-32 0.513 0.025 0.094 0.5 1.5
SWB10-3BH SSW10-3BH-316 10-32 0.513 0.025 0.094 2.0 5.0
SWB10-4B SSW10-4B-316 1/4-20 0.531 0.035 0.125 3.0 7.0
SWB10-4BL SSW10-4BL-316 1/4-20 0.531 0.035 0.125 2.0 4.0
SWB10-4BH SSW10-4BH-316 1/4-20 0.531 0.035 0.125 4.0 12.0
SWB10-5B SSW10-5B-316 5/16-18 0.578 0.040 0.156 4.0 9.0
SWB10-5BL SSW10-5BL-316 5/16-18 0.578 0.040 0.156 2.0 4.5
SWB10-5BH SSW10-5BH-316 5/16-18 0.578 0.040 0.156 6.0 17.0
SWB10-6B SSW10-6B-316 3/8-16 0.625 0.048 0.188 5.0 10.0
SWB10-6BL SSW10-6BL-316 3/8-16 0.625 0.048 0.188 2.5 5.0
SWB10-6BH SSW10-6BH-316 3/8-16 0.625 0.048 0.188 6.0 21.0
SWB10-8B SSW10-8B-316 1/2-13 0.750 0.072 0.281 6.0 12.0
SWB10-8BL SSW10-8BL-316 1/2-13 0.750 0.072 0.281 3.0 6.0
SWB10-8BH SSW10-8BH-316 1/2-13 0.750 0.072 0.281 6.0 30.0
SWB10-10B SSW10-10B-316 5/8-11 0.984 0.096 0.375 9.0 18.0
SWB10-10BL SSW10-10BL-316 5/8-11 0.984 0.096 0.375 4.5 9.0
SWB10-10BH SSW10-10BH-316 5/8-11 0.984 0.096 0.375 7.0 50.0
