Rest Buttons – Circular Type

Made from cold finished steel. Carburized and hardened with a black oxide finish. Ground tolerance ±.0005″.

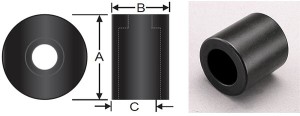

S&W P/N Screw Size (A) Button Dia (B) Button Length (C) Insert Dia (D)
CF-1 #10 1/2 5/16 7/32
CF-1L #10 1/2 1/2 7/32
CF-2 1/4 5/8 7/16 9/32
CF-2L 1/4 5/8 5/8 9/32
CF-3 5/16 3/4 1/2 3/8
CF-6 5/16 3/4 5/8 3/8
CF-3L 5/16 3/4 3/4 3/8
CF-4 3/8 15/16 5/8 7/16
CF-7 3/8 15/16 3/4 7/16
CF-8 3/8 15/16 7/8 7/16
CF-9 3/8 15/16 1 7/16
CF-5 1/2 1-1/4 7/8 9/16
