Stubby Pull Ring – Non-Locking Nose With Nylon Patch

  • Stubby Non-Locking Pull Ring Spring Plungers
  • Steel, Stainless Steel and Brass
  • Nylon Patch
  • Also available with nylon pellet

Steel P/N 303 Stainless P/N 316 Stainless P/N Brass P/N Thread (A) Body Length (B) Thread Length (C) Nose Length (D) Nose Dia (E) Ring Dia (F) Start End Force (lbs) Final End Force (lbs)
PRW25 SPRW25 SPRW25-316 BPRW25 1/4-20 0.57 0.31 0.19 0.160 3/4 0.5 2
PRW38 SPRW38 SPRW38-316 BPRW38 3/8-16 0.82 0.44 0.28 0.250 3/4 0.75 3

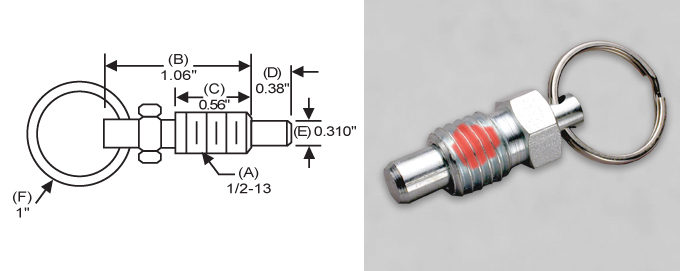

PRW50 SPRW50 SPRW50-316 BPRW50 1/2-13 1.06 0.56 0.38 0.310 1 1 4

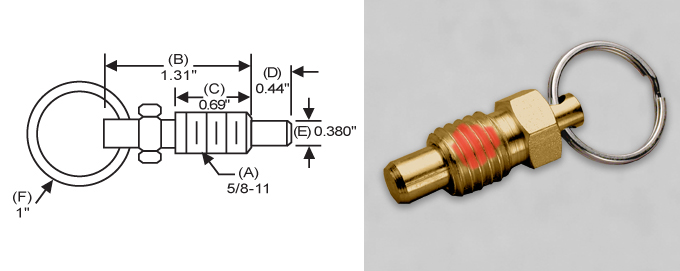

PRW58 SPRW58 SPRW58-316 BPRW58 5/8-11 1.31 0.69 0.44 0.380 1 1.25 5
PRW75 SPRW75 SPRW75-316 BPRW75 3/4-10 1.50 0.88 0.50 0.437 1-1/8 1.5 6
PRW100 SPRW100 SPRW100-316 BPRW100 1-8 1.75 1.00 0.63 0.500 1-1/8 1.75 7
