- Steel, 303 Stainless Steel and 316 Stainless Steel
- Stud Style
- Swivel
- Non-skid
- Inch
| S&W P/N | 303 Stainless P/N | 316 Stainless P/N | Thread (A) | Base Dia (B) | Thread Length (C) | Total Height (D) | Max Load (lbs) | Hex Size (E) | Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| NSW-00 | NSSW-00 | NSSW-00-316 | 10-32 | 3/4 | 1 | 1 5/8 | 525 | 3/8 | 0.04 |
| NSW-00A | NSSW-00A | NSSW-00A-316 | 10-32 | 3/4 | 2 | 2 5/8 | 525 | 3/8 | 0.04 |
| NSW-0 | NSSW-0 | NSSW-0-316 | 1/4-20 | 1 | 1 1/4 | 2 1/16 | 750 | 1/2 | 0.10 |
| NSW-0A | NSSW-0A | NSSW-0A-316 | 1/4-20 | 1 | 2 1/2 | 3 5/16 | 750 | 1/2 | 0.12 |
| NSW-0B | NSSW-0B | NSSW-0B-316 | 1/4-28 | 1 | 1 1/4 | 2 1/16 | 580 | 1/2 | 0.12 |
| NSW-100 | NSSW-100 | NSSW-100-316 | 5/16-18 | 1 1/4 | 2 | 3 | 1875 | 5/8 | 0.10 |
| NSW-100A | NSSW-100A | NSSW-100A-316 | 5/16-18 | 1 1/4 | 4 | 5 | 1875 | 5/8 | 0.12 |

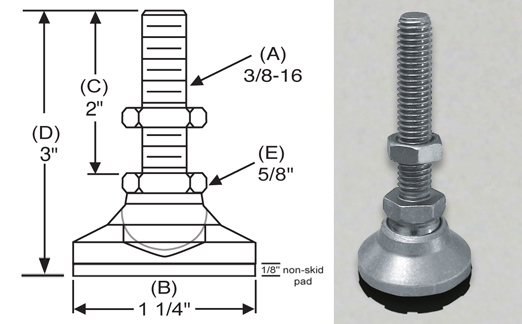

| NSW-1 | NSSW-1 | NSSW-1-316 | 3/8-16 | 1 1/4 | 2 | 3 | 2800 | 5/8 | 0.22 |
| NSW-1A | NSSW-1A | NSSW-1A-316 | 3/8-16 | 1 1/4 | 4 | 5 | 2800 | 5/8 | 0.26 |
| NSW-1B | NSSW-1B | NSSW-1B-316 | 3/8-24 | 1 1/4 | 2 | 3 | 2475 | 5/8 | 0.20 |
| NSW-2 | NSSW-2 | NSSW-2-316 | 1/2-13 | 1 7/8 | 2 | 3 1/4 | 3750 | 3/4 | 0.49 |
| NSW-2A | NSSW-2A | NSSW-2A-316 | 1/2-13 | 1 7/8 | 4 | 5 1/4 | 3750 | 3/4 | 0.59 |
| NSW-2B | NSSW-2B | NSSW-2B-316 | 1/2-20 | 1 7/8 | 2 | 3 1/4 | 3000 | 3/4 | 0.51 |

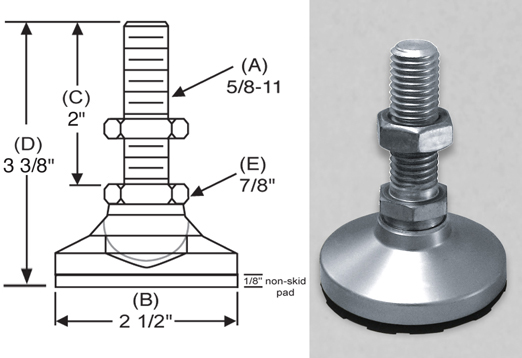

| NSW-3 | NSSW-3 | NSSW-3-316 | 5/8-11 | 2 1/2 | 2 | 3 3/8 | 4500 | 7/8 | 1.08 |
| NSW-3A | NSSW-3A | NSSW-3A-316 | 5/8-11 | 2 1/2 | 4 | 5 3/8 | 4500 | 7/8 | 1.14 |
| NSW-3B | NSSW-3B | NSSW-3B-316 | 5/8-18 | 2 1/2 | 2 | 3 3/8 | 3750 | 7/8 | 1.08 |

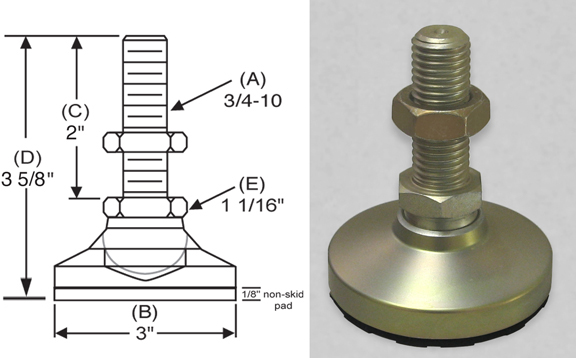

| NSW-4 | NSSW-4 | NSSW-4-316 | 3/4-10 | 3 | 2 | 3 5/8 | 5550 | 1 1/16 | 1.74 |
| NSW-4A | NSSW-4A | NSSW-4A-316 | 3/4-10 | 3 | 4 | 5 5/8 | 5550 | 1 1/16 | 1.94 |
| NSW-4B | NSSW-4B | NSSW-4B-316 | 3/4-16 | 3 | 2 | 3 5/8 | 4650 | 1 1/16 | 1.18 |
| NSW-5 | NSSW-5 | NSSW-5-316 | 1-8 | 4 | 3 1/2 | 5 1/2 | 15000 | 1 3/8 | 3.64 |
| NSW-5EL | NSSW-5EL | NSSW-5EL-316 | 1-8 | 4 | 4 1/4 | 6 1/4 | 15000 | 1 3/8 | 3.80 |
| NSW-5A | NSSW-5A | NSSW-5A-316 | 1-8 | 4 | 6 | 8 | 15000 | 1 3/8 | 4.14 |
| NSW-5G | NSSW-5G | NSSW-5G-316 | 1-8 | 4 | 8 | 10 | 15000 | 1 3/8 | 4.55 |

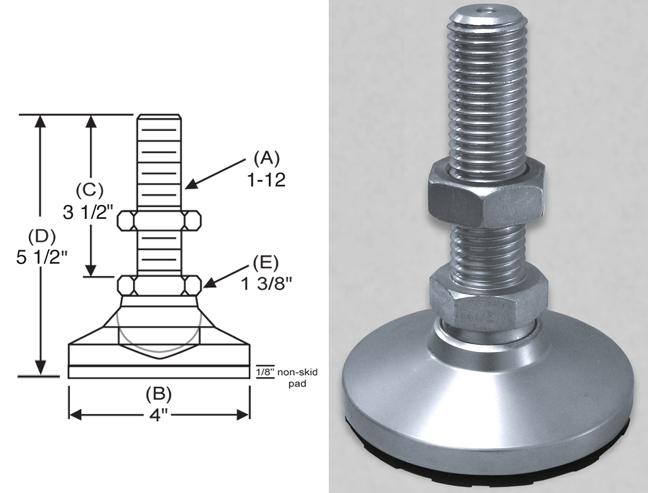

| NSW-5B | NSSW-5B | NSSW-5B-316 | 1-12 | 4 | 3 1/2 | 5 1/2 | 13500 | 1 3/8 | 3.60 |
| NSW-5C | NSSW-5C | NSSW-5C-316 | 7/8-9 | 4 | 4 | 6 | 11250 | 1 3/8 | 3.42 |
| NSW-5D | NSSW-5D | NSSW-5D-316 | 7/8-14 | 4 | 4 | 6 | 10125 | 1 3/8 | 3.50 |
| NSW-6 | NSSW-6 | NSSW-6-316 | 1 1/4-7 | 6 | 4 | 6 7/8 | 32250 | 1 7/8 | 10.61 |
| NSW-6EL | NSSW-6EL | NSSW-6EL-316 | 1 1/4-7 | 6 | 4 | 8 7/8 | 32250 | 1 7/8 | 11.12 |
