- Steel and Stainless Steel
- Tapped Style
- Swivel
- Inch
| Steel P/N | Stainless P/N | Thread (A) | Base Dia (B) | Total Height (D) | Max Load (lbs) | Hex Size (E) | Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|

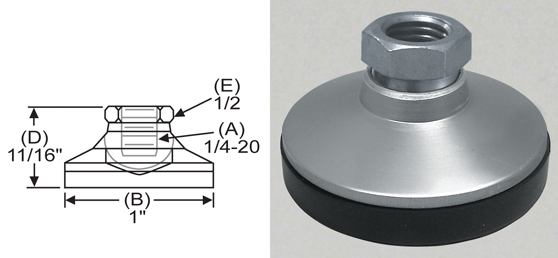

| SL-0T | SSL-0T | 1/4-20 | 1 | 11/16 | 750 | 1/2 | 0.08 |
| SLF-0T | SSLF-0T | 1/4-28 | 1 | 11/16 | 750 | 1/2 | 0.08 |

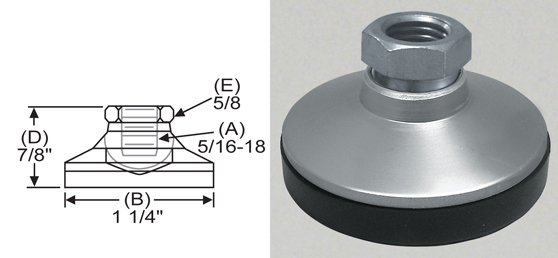

| SL-100T | SSL-100T | 5/16-18 | 1 1/4 | 7/8 | 1875 | 5/8 | 0.12 |
| SL-1T | SSL-1T | 3/8-16 | 1 1/4 | 7/8 | 2800 | 5/8 | 0.14 |

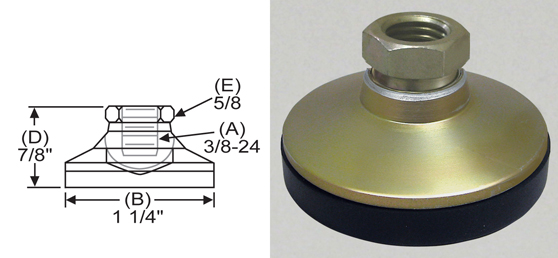

| SLF-1T | SSLF-1T | 3/8-24 | 1 1/4 | 7/8 | 2475 | 5/8 | 0.14 |

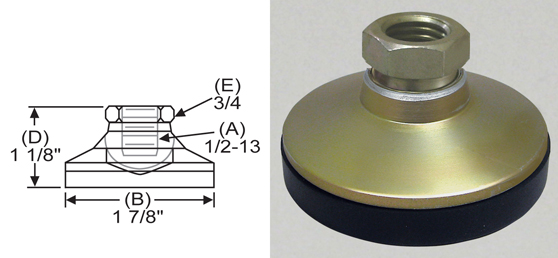

| SL-2T | SSL-2T | 1/2-13 | 1 7/8 | 1 1/8 | 3750 | 3/4 | 0.34 |
| SLF-2T | SSLF-2T | 1/2-20 | 1 7/8 | 1 1/8 | 3000 | 3/4 | 0.34 |
| SL-3T | SSL-3T | 5/8-11 | 2 1/2 | 1 1/4 | 4500 | 7/8 | 0.78 |
| SLF-3T | SSLF-3T | 5/8-18 | 2 1/2 | 1 1/4 | 3750 | 7/8 | 0.78 |
| SL-4T | SSL-4T | 3/4-10 | 3 | 1 1/2 | 5550 | 1 1/16 | 1.30 |
| SLF-4T | SSLF-4T | 3/4-16 | 3 | 1 1/2 | 4650 | 1 1/16 | 1.30 |
