- Non-Locking Pull Ring Spring Plungers
- Steel, Stainless Steel and Brass
| Steel P/N | 303 Stainless P/N | Brass P/N | Thread Size (A) | Body Length (B) | Thread Length (C) | Nose Length (D) | Nose Dia (E) | Ring Dia (F) | Start End Force (lbs) | Final End Force (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| NSTPR25 | NSSTPR25 | BNSTPR25 | 1/4-20 | 1.14 | 0.80 | 0.250 | 0.155 | 7/8 | 1 | 2.5 |
| NSTPR38 | NSSTPR38 | BNSTPR38 | 3/8-16 | 1.68 | 1.20 | 0.375 | 0.233 | 7/8 | 2 | 4 |
| NSTPR50 | NSSTPR50 | BNSTPR50 | 1/2-13 | 2.00 | 1.40 | 0.500 | 0.312 | 1 | 2.5 | 5 |
| NSTPR58 | NSSTPR58 | BNSTPR58 | 5/8-11 | 3.35 | 2.27 | 0.550 | 0.312 | 1-1/4 | 3 | 6 |

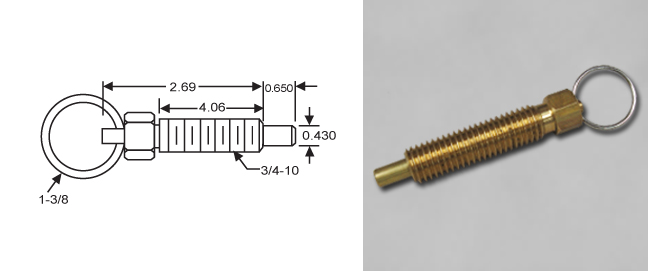

| NSTPR75 | NSSTPR75 | BNSTPR75 | 3/4-10 | 4.06 | 2.69 | 0.650 | 0.430 | 1-3/8 | 5 | 10 |
| NSTPR100 | NSSTPR100 | BNSTPR100 | 1-8 | 4.63 | 3.25 | 0.900 | 0.680 | 1-3/8 | 8 | 20 |
