- Steel and Stainless Steel
- Nylon Base
- Tapped Style
- Metric
- Patent# US 6,742,750 B2
| Steel P/N | Stainless P/N | Thread (A) | Base Dia (B) | Total Height (D) | Max Load (kg) | Hex Size (E) | Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|
| BMNYLA1-T | BSMNYLA1-T | M10 | 40 | 35 | 1135 | 16 | 0.14 |
| BMNYLA2-T | BSMNYLA2-T | M10 | 51 | 37 | 1818 | 16 | 0.14 |
| BMNYLB2-T | BSMNYLB2-T | M12 | 51 | 41 | 1818 | 20 | 0.16 |
| BMNYLC2-T | BSMNYLC2-T | M16 | 51 | 43 | 1818 | 22 | 0.18 |
| BMNYLA3-T | BSMNYLA3-T | M10 | 76 | 37 | 2270 | 16 | 0.22 |
| BMNYLB3-T | BSMNYLB3-T | M12 | 76 | 41 | 2270 | 20 | 0.24 |
| BMNYLC3-T | BSMNYLC3-T | M16 | 76 | 43 | 2270 | 22 | 0.26 |
| BMNYLD3-T | BSMNYLD3-T | M20 | 76 | 46 | 2270 | 27 | 0.34 |
| BMNYLA4-T | BSMNYLA4-T | M10 | 102 | 41 | 1590 | 16 | 0.36 |
| BMNYLB4-T | BSMNYLB4-T | M12 | 102 | 46 | 2270 | 20 | 0.40 |
| BMNYLC4-T | BSMNYLC4-T | M16 | 102 | 48 | 2725 | 22 | 0.42 |
| BMNYLD4-T | BSMNYLD4-T | M20 | 102 | 51 | 3409 | 27 | 0.50 |

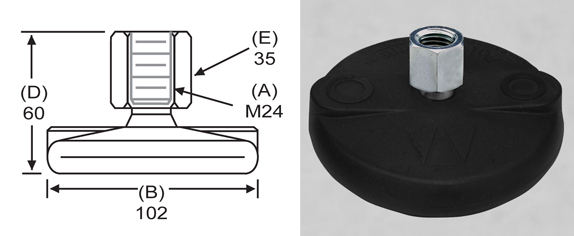

| BMNYLE4-T | BSMNYLE4-T | M24 | 102 | 60 | 3409 | 35 | 0.94 |
