Glide-Rite™ (Stud Style, Nylon Base, Inch)

Steel P/N	Stainless P/N	Thread (A)	Base Dia (B)	Thread Length (C)	Total Height (D)	Max Load (lbs)	Ship Wt (lbs)
G-01	SG-01	10-24	1.200	1 1/2	2 1/2	250	0.04
G-02	SG-02	1/4-20	1.200	1 1/2	2 1/2	250	0.04
G-03	SG-03	5/16-18	1.200	1 1/2	2 1/2	250	0.04
G-04	SG-04	5/16-18	2.030	2	3	250	0.12
G-05	SG-05	3/8-16	2.030	2	3	250	0.14
G-06	SG-06	3/8-16	2.400	2	3	250	0.18
G-07	SG-07	3/8-16	2.400	4	5	250	0.24
G-08	SG-08	1/2-13	2.400	2	3	250	0.24
G-09	SG-09	1/2-13	2.400	4	5	250	0.34
G-010	SG-010	1/2-13	2.800	2	3	500	0.26
G-011	SG-011	1/2-13	2.800	4	5	500	0.36
G-012	SG-012	5/8-11	2.800	2	3	500	0.32
G-013	SG-013	5/8-11	2.800	4	5	500	0.48

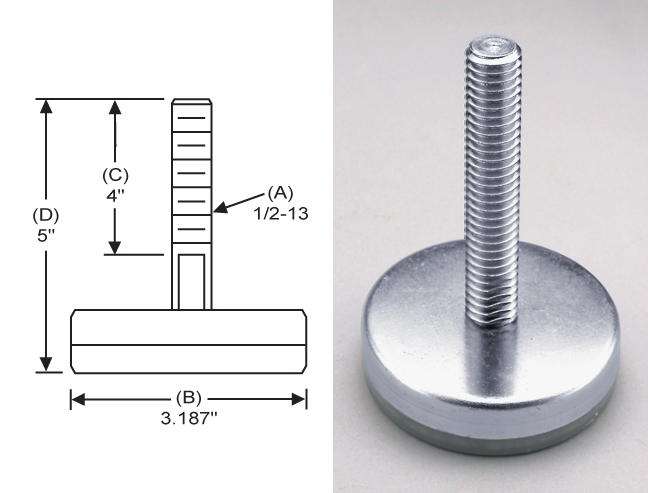

G-014	SG-014	1/2-13	3.187	4	5	500	0.44
G-015	SG-015	1/2-13	3.187	6	7	500	0.52
G-016	SG-016	5/8-11	3.187	4	5	500	0.56
G-017	SG-017	5/8-11	3.187	6	7	500	0.70
G-018	SG-018	3/4-10	2.800	2	3	500	0.40
G-019	SG-019	3/4-10	2.800	4	5	500	0.60
G-020	SG-020	3/4-10	3.187	4	5	500	0.70
G-021	SG-021	3/4-10	3.187	6	7	500	0.90
