- Non-Locking L-Handle Spring Plungers
- Steel and Stainless Steel
| Steel P/N | 303 Stainless P/N | 316 Stainless P/N | Nylon Nose P/N | Thread (A) | Thread Length (H) | Body Length (B) | Nose Length (C) | Nose Dia (D) | Hex Size (E) | Handle Length (F) | Handle Dia (G) | Thread Relief (I) | Start End Force (lbs) | Final End Force (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LN-0 | LNS-0 | SLN-0-316 | NLN-0 | 1/4-20 | 0.50 | 0.75 | 0.20 | 0.16 | 1/4 | 0.40 | 0.09 | – | 0.12 | 0.5 |

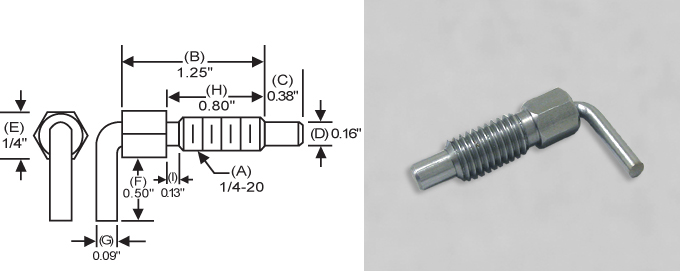

| LN-1 | LNS-1 | SLN-1-316 | NLN-1 | 1/4-20 | 0.80 | 1.25 | 0.38 | 0.16 | 1/4 | 0.50 | 0.19 | – | 0.5 | 2.5 |
| LN-2 | LNS-2 | SLN-2-316 | NLN-2 | 3/8-16 | 0.75 | 1.13 | 0.30 | 0.25 | 3/8 | 0.56 | 0.14 | 0.13 | 0.25 | 1.25 |
| LN-3 | LNS-3 | SLN-3-316 | NLN-3 | 3/8-16 | 1.31 | 2.00 | 0.56 | 0.25 | 3/8 | 0.75 | 0.14 | 0.13 | 0.75 | 3.75 |
| LN-4 | LNS-4 | SLN-4-316 | NLN-4 | 1/2-13 | 1.00 | 1.50 | 0.40 | 0.31 | 1/2 | 0.75 | 0.19 | 0.13 | 0.5 | 2 |
| LN-5 | LNS-5 | SLN-5-316 | NLN-5 | 1/2-13 | 1.25 | 2.11 | 0.75 | 0.31 | 1/2 | 1.00 | 0.19 | 0.13 | 1 | 5 |

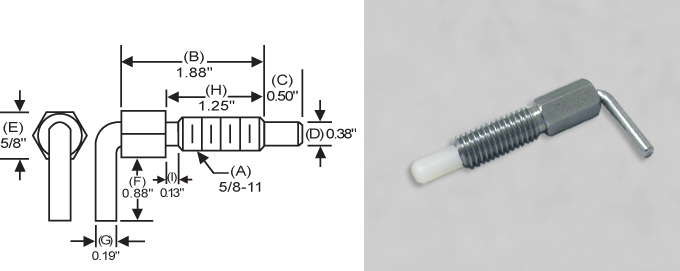

| LN-6 | LNS-6 | SLN-6-316 | NLN-6 | 5/8-11 | 1.25 | 1.88 | 0.50 | 0.38 | 5/8 | 0.88 | 0.19 | 0.13 | 0.75 | 2.5 |

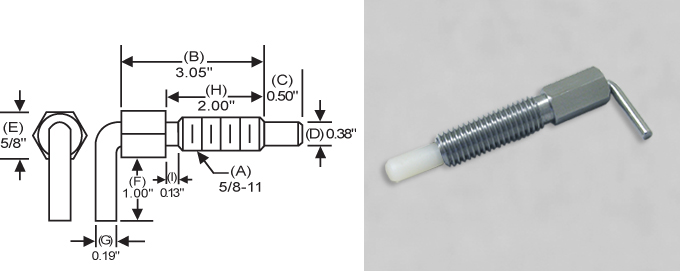

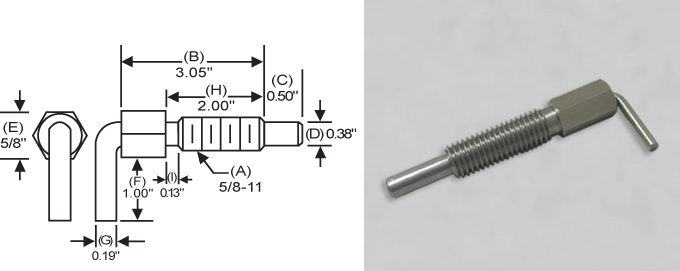

| LN-7 | LNS-7 | SLN-7-316 | NLN-7 | 5/8-11 | 2.00 | 3.05 | 1.00 | 0.38 | 5/8 | 1.00 | 0.19 | 0.13 | 1 | 5 |
