- Steel and Stainless Steel
- Stud Style Levelers
- Medium-duty
- Vibration Control
- Metric
| Steel P/N | Stainless P/N | Thread (A) | Base Dia (B) | Thread Length (C) | Total Height (D) | Max Load (Kgs) | Natural Frequency (Hz) | Hex Size (E) | Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|---|---|

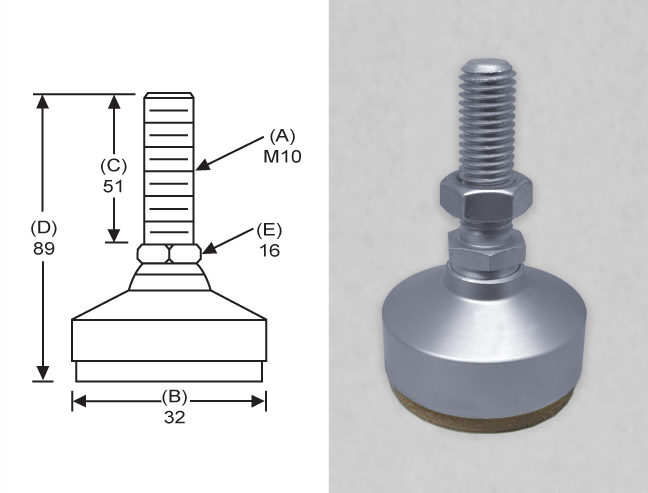

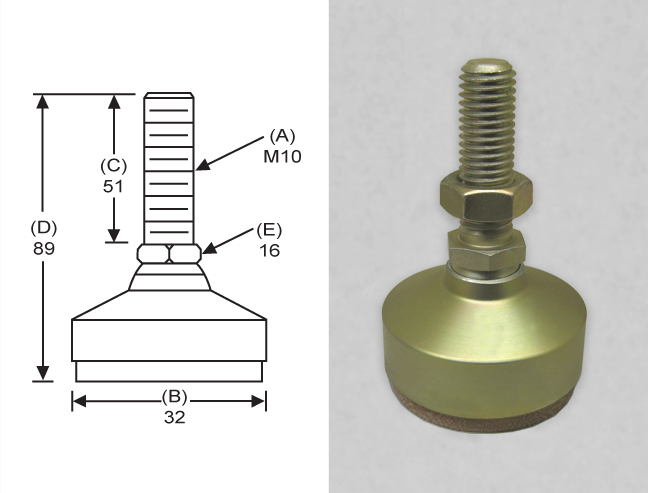

| MB-SW1M | SSMB-SW1M | M10 | 32 | 51 | 89 | 181 | 16 | 16 | 0.36 |

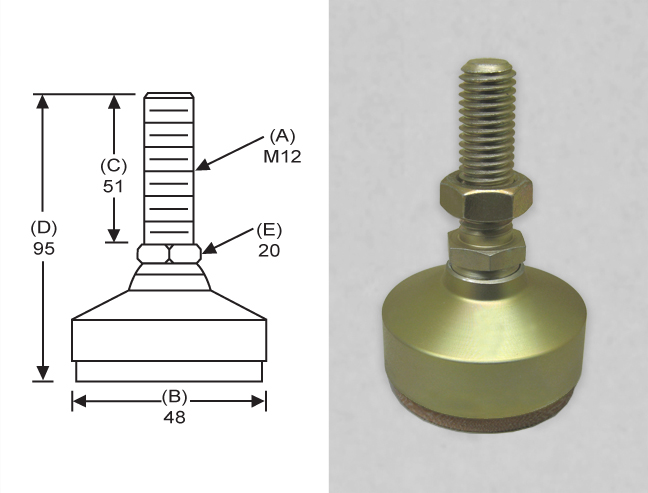

| MB-SW2M | SSMB-SW2M | M12 | 48 | 51 | 95 | 454 | 16 | 20 | 0.84 |

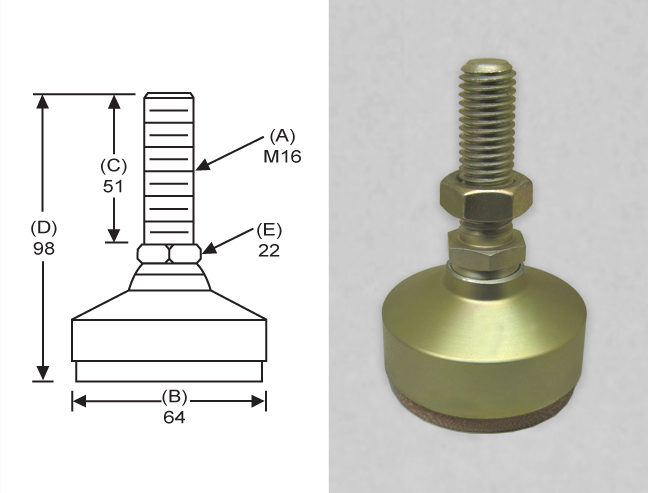

| MB-SW3M | SSMB-SW3M | M16 | 64 | 51 | 98 | 816 | 15 | 22 | 1.48 |
| MB-SW4M | SSMB-SW4M | M20 | 76 | 51 | 105 | 1134 | 15 | 27 | 2.46 |

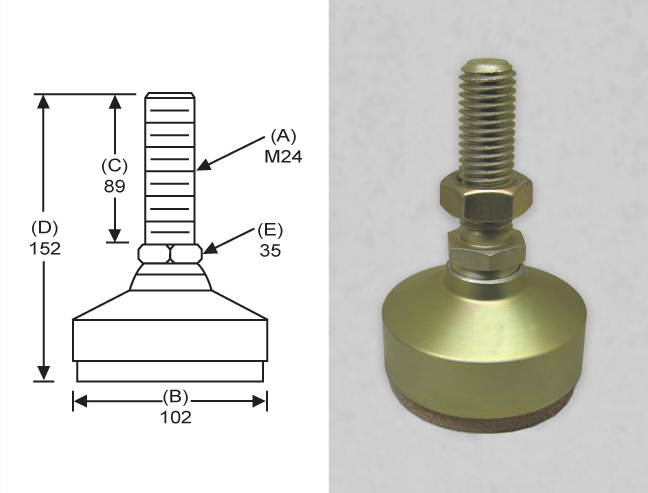

| MB-SW5M | SSMB-SW5M | M24 | 102 | 89 | 152 | 2041 | 13.5 | 35 | 4.56 |

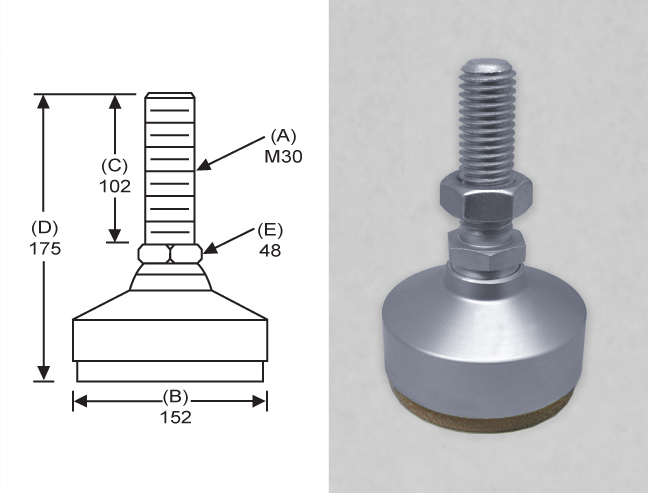

| MB-SW6M | SSMB-SW6M | M30 | 152 | 102 | 175 | 4536 | 13 | 48 | 9.52 |
