S&W P/N | Thread | Knob Dia (A) | Total Length (B) | Hub Dia (C) | Hub Length (D) | Stud Length (E) | Ship Wt (lbs) |
---|---|---|---|---|---|---|---|
ALHA-1M | M6 | 38 | 67 | 16 | 10 | 45 | .06 |
ALHA-2M | M6 | 38 | 98 | 16 | 10 | 76 | .08 |
ALHA-3M | M8 | 51 | 70 | 21 | 13 | 45 | .12 |
ALHA-4M | M8 | 51 | 102 | 21 | 13 | 76 | .14 |
ALHA-5M | M10 | 64 | 73 | 25 | 14 | 45 | .18 |
ALHA-6M | M10 | 64 | 105 | 25 | 14 | 76 | .20 |

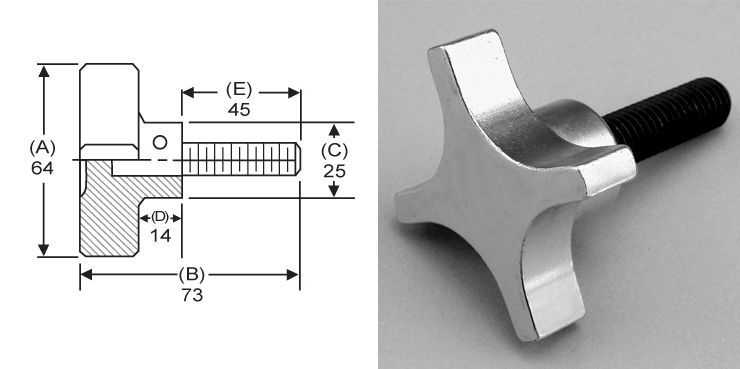

ALHA-7M | M12 | 64 | 73 | 25 | 14 | 45 | .22 |
ALHA-8M | M12 | 64 | 105 | 25 | 14 | 76 | .28 |
ALHA-9M | M16 | 76 | 76 | 32 | 16 | 45 | .39 |
ALHA-10M | M16 | 76 | 108 | 32 | 16 | 76 | .44 |
