Ball Plunger – Steel Inch

  • Steel body
  • Steel and Nylon Nose
  • Add “P” to end of part number for optional nylon patch. Do not use the nylon patch if threading into soft material such as aluminum.
  • Add “PT” for nylon pellet.
Stainless Ball P/N Nylon Ball P/N Thread (A) Body Length (B) Nose Length (C) Nose Dia (D) Start End Force (lbs) End End Force (lbs)
SW10-11B SWN10-11B 4-48 0.187 0.020 0.062 0.125 0.5
SW10-12B SWN10-12B 5-40 0.250 0.020 0.062 0.25 0.75
SW10-1B SWN10-1B 6-40 0.312 0.023 0.078 0.5 1
SW10-22B SWN10-22B 8-32 0.344 0.025 0.094 0.5 1.25
SW10-2B SWN10-2B 8-36 0.344 0.025 0.094 0.5 1.25
SW10-3B SWN10-3B 10-32 0.513 0.025 0.094 1.5 3
SW10-3BL SWN10-3BL 10-32 0.513 0.025 0.094 0.5 1.5

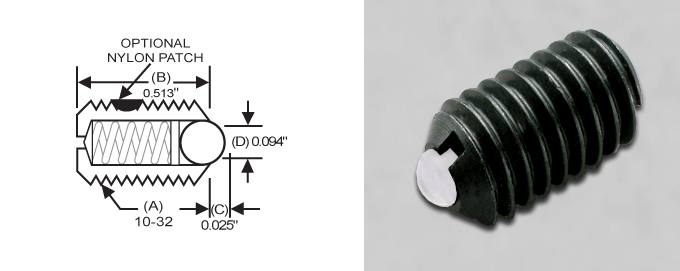

SW10-3BH SWN10-3BH 10-32 0.513 0.025 0.094 2 5
SW10-4B SWN10-4B 1/4-20 0.531 0.035 0.125 3 7
SW10-4BL SWN10-4BL 1/4-20 0.531 0.035 0.125 2 4

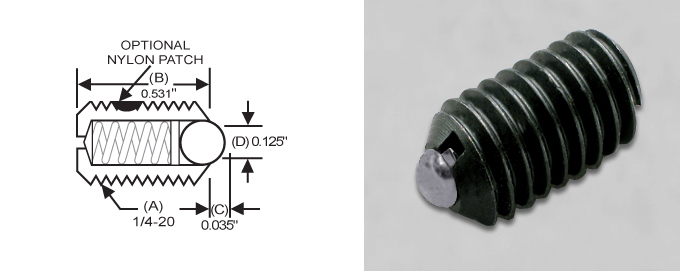

SW10-4BH SWN10-4BH 1/4-20 0.531 0.035 0.125 4 12
SW10-5B SWN10-5B 5/16-18 0.578 0.040 0.156 4 9
SW10-5BL SWN10-5BL 5/16-18 0.578 0.040 0.156 2 4.5
SW10-5BH SWN10-5BH 5/16-18 0.578 0.040 0.156 6 17
SW10-6B SWN10-6B 3/8-16 0.625 0.048 0.188 5 10
SW10-6BL SWN10-6BL 3/8-16 0.625 0.048 0.188 2.5 5
SW10-6BH SWN10-6BH 3/8-16 0.625 0.048 0.188 6 21
SW10-8B SWN10-8B 1/2-13 0.750 0.072 0.281 6 12
SW10-8BL SWN10-8BL 1/2-13 0.750 0.072 0.281 3 6
SW10-8BH SWN10-8BH 1/2-13 0.750 0.072 0.281 6 30
SW10-10B SWN10-10B 5/8-11 0.984 0.096 0.375 9 18
SW10-10BL SWN10-10BL 5/8-11 0.984 0.096 0.375 4.5 9
SW10-10BH SWN10-10BH 5/8-11 0.984 0.096 0.375 7 50
