- Steel & Stainless Steel
- Stud Style
- Light-Duty Vibration Pad
- Metric
| Steel P/N | Stainless P/N | Thread (A) | Base Dia (B) | Thread Length (C) | Total Height (D) | Max Load (kg) | Hex Size (E) | Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|---|
| MLP1-A3L | MSLP1-A3L | M10 | 51 | 76 | 113 | 680 | 16 | 0.42 |
| MLP1-A4L | MSLP1-A4L | M10 | 51 | 102 | 138 | 680 | 16 | 0.48 |

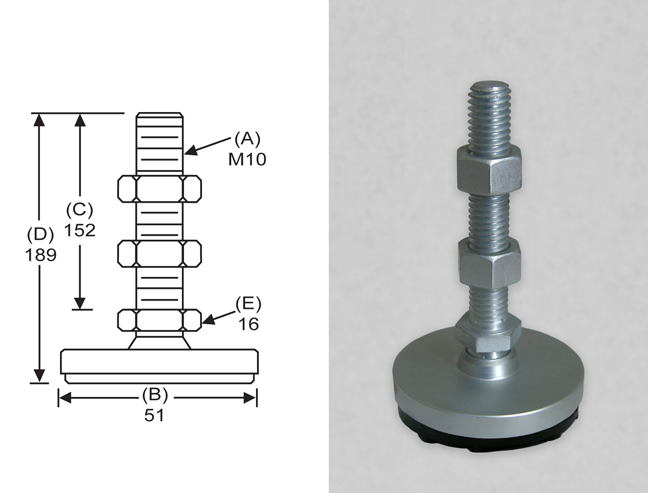

| MLP1-A6L | MSLP1-A6L | M10 | 51 | 152 | 189 | 680 | 16 | 0.50 |
| MLP1-A8L | MSLP1-A8L | M10 | 51 | 203 | 240 | 680 | 16 | 0.58 |
| MLP1-B3L | MSLP1-B3L | M12 | 51 | 76 | 113 | 1364 | 20 | 0.56 |
| MLP1-B4L | MSLP1-B4L | M12 | 51 | 102 | 138 | 1364 | 20 | 0.60 |
| MLP1-B6L | MSLP1-B6L | M12 | 51 | 152 | 189 | 1364 | 20 | 0.65 |
| MLP1-B8L | MSLP1-B8L | M12 | 51 | 203 | 240 | 1364 | 20 | 0.68 |
| MLP1-C3L | MSLP1-C3L | M16 | 51 | 76 | 113 | 2045 | 22 | 0.70 |
| MLP1-C4L | MSLP1-C4L | M16 | 51 | 102 | 138 | 2045 | 22 | 0.80 |
| MLP1-C6L | MSLP1-C6L | M16 | 51 | 152 | 189 | 2045 | 22 | 0.94 |
| MLP1-C8L | MSLP1-C8L | M16 | 51 | 203 | 240 | 2045 | 22 | 1.10 |
| MLP2-A3L | MSLP2-A3L | M10 | 64 | 76 | 113 | 680 | 16 | 0.56 |
| MLP2-A4L | MSLP2-A4L | M10 | 64 | 102 | 138 | 680 | 16 | 0.60 |
| MLP2-A6L | MSLP2-A6L | M10 | 64 | 152 | 189 | 680 | 16 | 0.62 |
| MLP2-A8L | MSLP2-A8L | M10 | 64 | 203 | 240 | 680 | 16 | 0.66 |

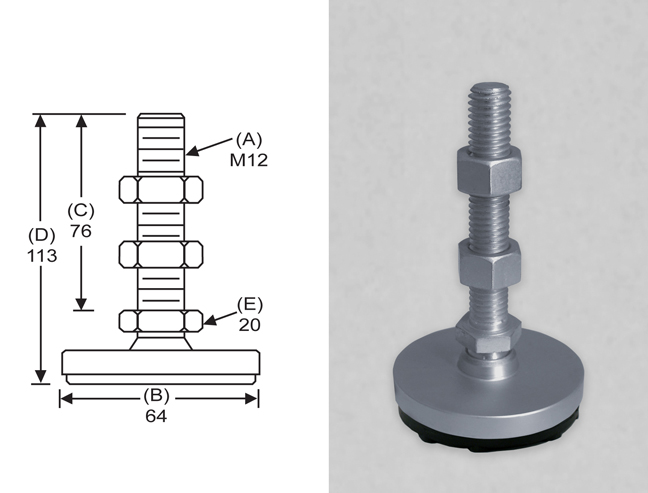

| MLP2-B3L | MSLP2-B3L | M12 | 64 | 76 | 113 | 1364 | 20 | 0.66 |
| MLP2-B4L | MSLP2-B4L | M12 | 64 | 102 | 138 | 1364 | 20 | 0.70 |
| MLP2-B6L | MSLP2-B6L | M12 | 64 | 152 | 189 | 1364 | 20 | 0.80 |
| MLP2-B8L | MSLP2-B8L | M12 | 64 | 203 | 240 | 1364 | 20 | 0.90 |
| MLP2-C3L | MSLP2-C3L | M16 | 64 | 76 | 113 | 2045 | 22 | 0.88 |
| MLP2-C4L | MSLP2-C4L | M16 | 64 | 102 | 138 | 2045 | 22 | 0.92 |
| MLP2-C6L | MSLP2-C6L | M16 | 64 | 152 | 189 | 2045 | 22 | 1.04 |
| MLP2-C8L | MSLP2-C8L | M16 | 64 | 203 | 240 | 2045 | 22 | 1.16 |
| MLP3-A3L | MSLP3-A3L | M10 | 76 | 76 | 113 | 680 | 16 | 0.79 |
| MLP3-A4L | MSLP3-A4L | M10 | 76 | 102 | 138 | 680 | 16 | 0.83 |
| MLP3-A6L | MSLP3-A6L | M10 | 76 | 152 | 189 | 680 | 16 | 0.87 |
| MLP3-A8L | MSLP3-A8L | M10 | 76 | 203 | 240 | 680 | 16 | 0.91 |

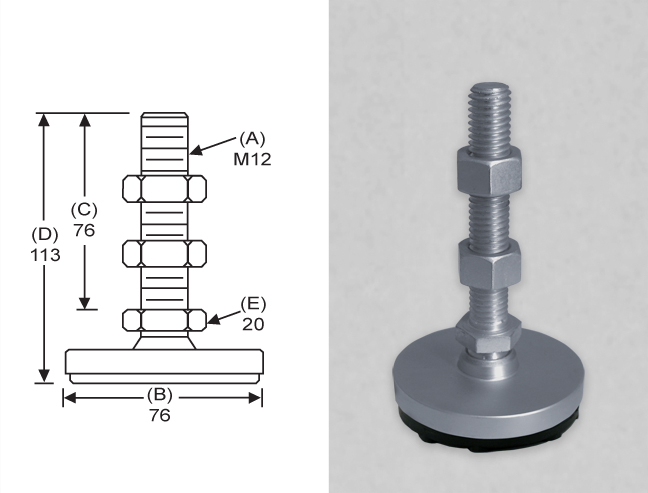

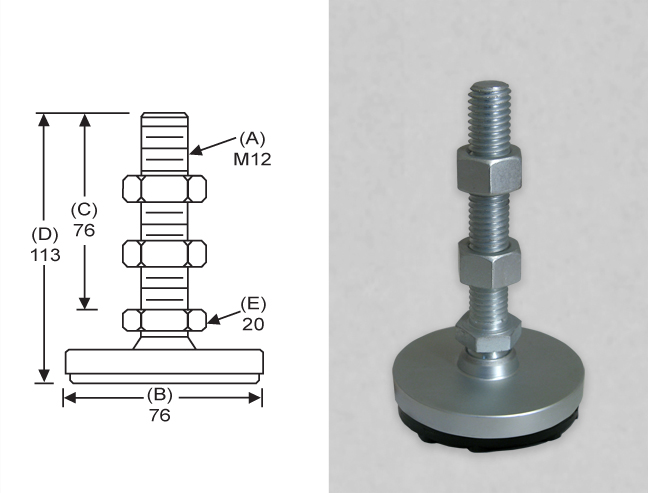

| MLP3-B3L | MSLP3-B3L | M12 | 76 | 76 | 113 | 1364 | 20 | 0.89 |
| MLP3-B4L | MSLP3-B4L | M12 | 76 | 102 | 138 | 1364 | 20 | 0.94 |
| MLP3-B6L | MSLP3-B6L | M12 | 76 | 152 | 189 | 1364 | 20 | 1.01 |
| MLP3-B8L | MSLP3-B8L | M12 | 76 | 203 | 240 | 1364 | 20 | 1.06 |
| MLP3-C3L | MSLP3-C3L | M16 | 76 | 76 | 113 | 2045 | 22 | 0.94 |
| MLP3-C4L | MSLP3-C4L | M16 | 76 | 102 | 138 | 2045 | 22 | 1.22 |
| MLP3-C6L | MSLP3-C6L | M16 | 76 | 152 | 189 | 2045 | 22 | 1.34 |
| MLP3-C8L | MSLP3-C8L | M16 | 76 | 203 | 240 | 2045 | 22 | 1.46 |
| MLP3-D3L | MSLP3-D3L | M20 | 76 | 76 | 113 | 2500 | 27 | 1.12 |
| MLP3-D4L | MSLP3-D4L | M20 | 76 | 102 | 138 | 2500 | 27 | 1.27 |
| MLP3-D6L | MSLP3-D6L | M20 | 76 | 152 | 189 | 2500 | 27 | 1.42 |

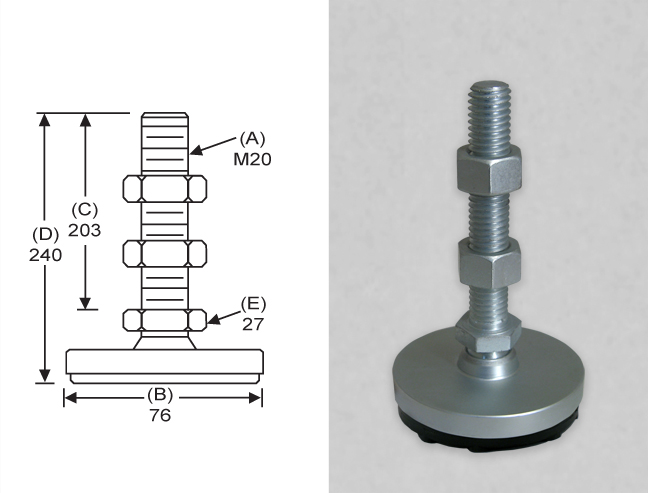

| MLP3-D8L | MSLP3-D8L | M20 | 76 | 203 | 240 | 2500 | 27 | 1.56 |
| MLP4-B3L | MSLP4-B3L | M12 | 102 | 76 | 113 | 1364 | 20 | 1.36 |
| MLP4-B4L | MSLP4-B4L | M12 | 102 | 102 | 138 | 1364 | 20 | 1.40 |
| MLP4-B6L | MSLP4-B6L | M12 | 102 | 152 | 189 | 1364 | 20 | 1.48 |
| MLP4-B8L | MSLP4-B8L | M12 | 102 | 203 | 240 | 1364 | 20 | 1.58 |
| MLP4-C3L | MSLP4-C3L | M16 | 102 | 76 | 113 | 2045 | 22 | 1.58 |
| MLP4-C4L | MSLP4-C4L | M16 | 102 | 102 | 138 | 2045 | 22 | 1.60 |
| MLP4-C6L | MSLP4-C6L | M16 | 102 | 152 | 189 | 2045 | 22 | 1.74 |
| MLP4-C8L | MSLP4-C8L | M16 | 102 | 203 | 240 | 2045 | 22 | 1.90 |

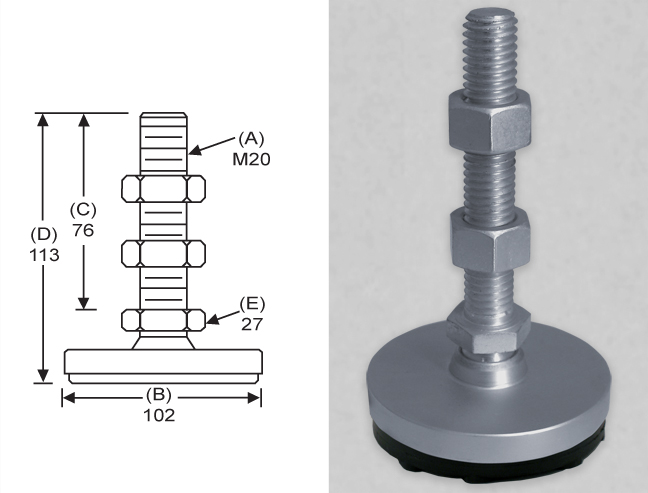

| MLP4-D3L | MSLP4-D3L | M20 | 102 | 76 | 113 | 2500 | 27 | 1.70 |
| MLP4-D4L | MSLP4-D4L | M20 | 102 | 102 | 138 | 2500 | 27 | 1.85 |
| MLP4-D6L | MSLP4-D6L | M20 | 102 | 152 | 189 | 2500 | 27 | 2.02 |
| MLP4-D8L | MSLP4-D8L | M20 | 102 | 203 | 240 | 2500 | 27 | 2.22 |
| MLP4-E3L | MSLP4-E3L | M24 | 102 | 76 | 113 | 2955 | 35 | 2.11 |
| MLP4-E4L | MSLP4-E4L | M24 | 102 | 102 | 138 | 2955 | 35 | 2.23 |
| MLP4-E6L | MSLP4-E6L | M24 | 102 | 152 | 189 | 2955 | 35 | 2.38 |
| MLP4-E8L | MSLP4-E8L | M24 | 102 | 203 | 240 | 2955 | 35 | 2.55 |
| MLP5-C3L | MSLP5-C3L | M16 | 152 | 76 | 113 | 2045 | 22 | 3.43 |
| MLP5-C4L | MSLP5-C4L | M16 | 152 | 102 | 138 | 2045 | 22 | 3.54 |
| MLP5-C6L | MSLP5-C6L | M16 | 152 | 152 | 189 | 2045 | 22 | 3.68 |
| MLP5-C8L | MSLP5-C8L | M16 | 152 | 203 | 240 | 2045 | 22 | 3.82 |
| MLP5-D3L | MSLP5-D3L | M20 | 152 | 76 | 113 | 2500 | 27 | 3.62 |
| MLP5-D4L | MSLP5-D4L | M20 | 152 | 102 | 138 | 2500 | 27 | 3.74 |
| MLP5-D6L | MSLP5-D6L | M20 | 152 | 152 | 189 | 2500 | 27 | 3.94 |
| MLP5-D8L | MSLP5-D8L | M20 | 152 | 203 | 240 | 2500 | 27 | 4.10 |
| MLP5-E3L | MSLP5-E3L | M24 | 152 | 76 | 113 | 2955 | 35 | 3.91 |
| MLP5-E4L | MSLP5-E4L | M24 | 152 | 102 | 138 | 2955 | 35 | 4.03 |
| MLP5-E6L | MSLP5-E6L | M24 | 152 | 152 | 189 | 2955 | 35 | 4.12 |

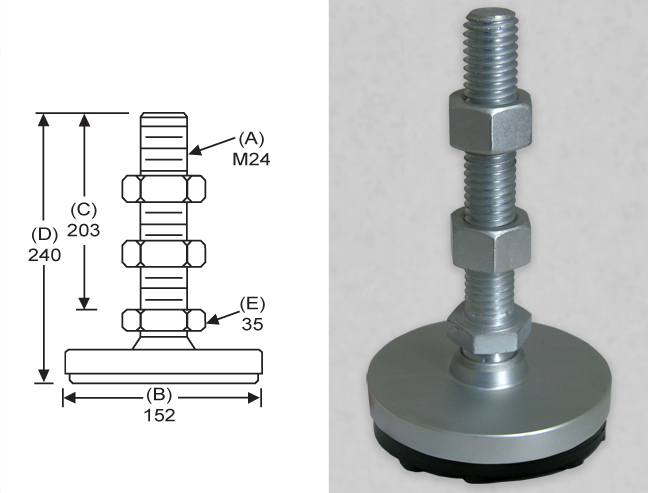

| MLP5-E8L | MSLP5-E8L | M24 | 152 | 203 | 240 | 2955 | 35 | 4.36 |
