Acme Thread Stud Style, 5″ Dia. Base, Inch

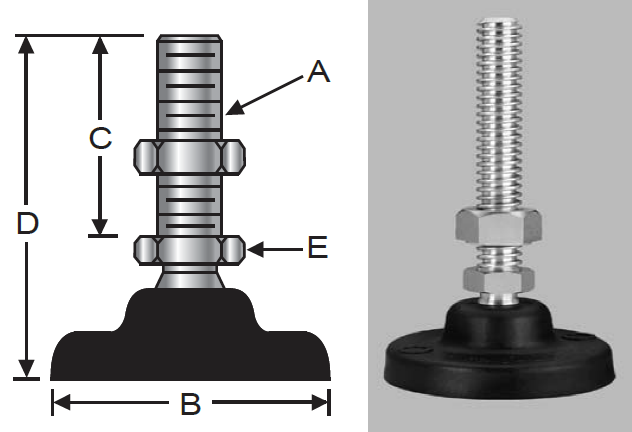

| Steel P/N | Stainless P/N | Thread (A) | Base Dia (B) | Thread Length (C) | Total Height (D) | Hex Size (E) | Max Load (lbs) |
|---|---|---|---|---|---|---|---|
| BNYLC54-ACME1 | BSNYLC54-ACME1 | 5/8-8 | 5 | 4 | 6 1/4 | 1 1/16 | 12000 |
| BNYLC56-ACME1 | BSNYLC56-ACME1 | 5/8-8 | 5 | 6 | 8 1/4 | 1 1/16 | 12000 |
| BNYLC58-ACME1 | BSNYLC58-ACME1 | 5/8-8 | 5 | 8 | 10 1/4 | 1 1/16 | 12000 |
| BNYLC510-ACME1 | BSNYLC510-ACME1 | 5/8-8 | 5 | 10 | 12 1/4 | 1 1/16 | 12000 |
| BNYLD54-ACME1 | BSNYLD54-ACME1 | 3/4-6 | 5 | 4 | 6 1/4 | 1 1/16 | 12000 |
| BNYLD56-ACME1 | BSNYLD56-ACME1 | 3/4-6 | 5 | 6 | 8 1/4 | 1 1/16 | 12000 |
| BNYLD58-ACME1 | BSNYLD58-ACME1 | 3/4-6 | 5 | 8 | 10 1/4 | 1 1/16 | 12000 |
| BNYLD510-ACME1 | BSNYLD510-ACME1 | 3/4-6 | 5 | 10 | 12 1/4 | 1 1/16 | 12000 |
| BNYLE54-ACME1 | BSNYLE54-ACME1 | 1-5 | 5 | 4 | 6 1/4 | 1 3/8 | 12000 |
| BNYLE56-ACME1 | BSNYLE56-ACME1 | 1-5 | 5 | 6 | 8 1/4 | 1 3/8 | 12000 |
| BNYLE58-ACME1 | BSNYLE58-ACME1 | 1-5 | 5 | 8 | 10 1/4 | 1 3/8 | 12000 |
| BNYLE510-ACME1 | BSNYLE510-ACME1 | 1-5 | 5 | 10 | 12 1/4 | 1 3/8 | 12000 |
| BNYLF54-ACME1 | BSNYLF54-ACME1 | 1 1/8-5 | 5 | 4 | 6 1/4 | 1 3/8 | 12000 |
| BNYLF56-ACME1 | BSNYLF56-ACME1 | 1 1/8-5 | 5 | 6 | 8 1/4 | 1 3/8 | 12000 |
| BNYLF58-ACME1 | BSNYLF58-ACME1 | 1 1/8-5 | 5 | 8 | 10 1/4 | 1 3/8 | 12000 |
| BNYLF510-ACME1 | BSNYLF510-ACME1 | 1 1/8-5 | 5 | 10 | 12 1/4 | 1 3/8 | 12000 |
| BNYLG54-ACME1 | BSNYLG54-ACME1 | 1 1/4-5 | 5 | 4 | 6 1/4 | 1 7/8 | 12000 |
| BNYLG56-ACME1 | BSNYLG56-ACME1 | 1 1/4-5 | 5 | 6 | 8 1/4 | 1 7/8 | 12000 |
| BNYLG58-ACME1 | BSNYLG58-ACME1 | 1 1/4-5 | 5 | 8 | 10 1/4 | 1 7/8 | 12000 |
| BNYLG510-ACME1 | BSNYLG510-ACME1 | 1 1/4-5 | 5 | 10 | 12 1/4 | 1 7/8 | 12000 |
