Precision Control Knobs – Without Handle, Inch

Aluminum and Stainless Steel Precision Knurled Control Knobs Without Handle, Inch

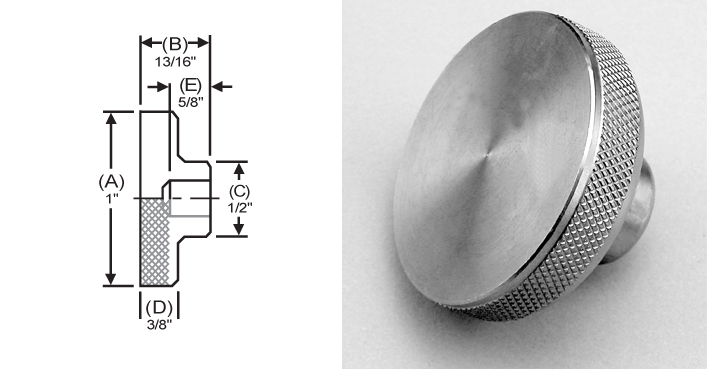

Aluminum P/N Stainless P/N Thread Size Reamed Dia Knob Dia (A) Total Length (B) Hub Dia (C) Knurled Width (D) Hole Depth (E)
ACK-011 SAK-011 1/4 1 13/16 1/2 3/8 5/8
ACK-012 SAK-012 Solid Hub 1 13/16 1/2 3/8
ACK-022 SAK-022 1/4-20 1 13/16 1/2 3/8 5/8
ACK-022B SAK-022B 1/4-28 1 13/16 1/2 3/8 5/8
ACK-023 SAK-023 5/16-18 1 13/16 1/2 3/8 5/8
ACK-023B SAK-023B 5/16-24 1 13/16 1/2 3/8 5/8
ACK-013 SAK-013 3/8 2 1 1/8 13/16 9/16 7/8
ACK-014 SAK-014 Solid Hub 2 1 1/8 13/16 9/16
ACK-024 SAK-024 3/8-16 2 1 1/8 13/16 9/16 7/8
ACK-024B SAK-024B 3/8-24 2 1 1/8 13/16 9/16 7/8
ACK-025 SAK-025 1/2-13 2 1 1/8 13/16 9/16 7/8
ACK-025B SAK-025B 1/2-20 2 1 1/8 13/16 9/16 7/8
ACK-015 SAK-015 5/8 3 1 1/4 1 1/4 11/16 7/8
ACK-016 SAK-016 Solid Hub 3 1 1/4 1 1/4 11/16
ACK-026 SAK-026 5/8-11 3 1 1/4 1 1/4 11/16 7/8
ACK-026B SAK-026B 5/8-18 3 1 1/4 1 1/4 11/16 7/8
ACK-027 SAK-027 3/4-10 3 1 1/4 1 1/4 11/16 7/8
ACK-027B SAK-027B 3/4-16 3 1 1/4 1 1/4 11/16 7/8
