- Steel and Stainless Steel
- Nylon Base
- Tapped Style
- Metric
- Patent# US 6,742,750 B2
| Steel P/N | Stainless P/N | Thread (A) | Base Dia (B) | Total Height (D) | Max Load (kg) | Hex Size (E) | Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|

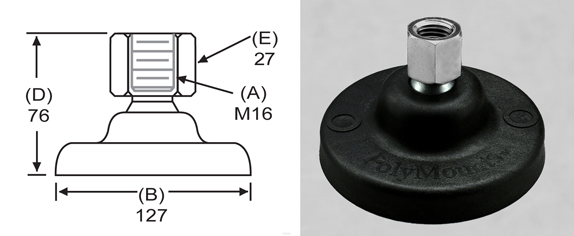

| BMNYLC5-T | BSMNYLC5-T | M16 | 127 | 76 | 4545 | 27 | 1.12 |

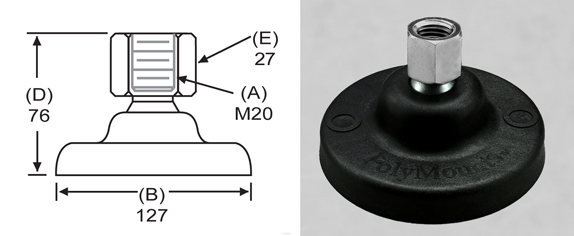

| BMNYLD5-T | BSMNYLD5-T | M20 | 127 | 76 | 4545 | 27 | 1.12 |

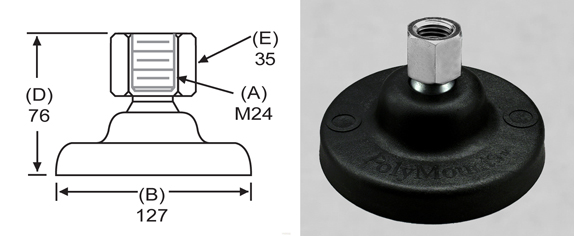

| BMNYLE5-T | BSMNYLE5-T | M24 | 127 | 76 | 4545 | 35 | 1.12 |

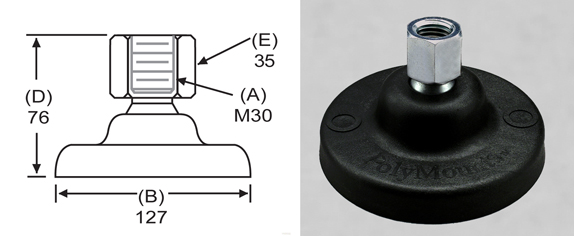

| BMNYLF5-T | BSMNYLF5-T | M30 | 127 | 76 | 4545 | 35 | 1.12 |
