Short Spring Plunger – Steel, Standard End Force

  • Steel body
  • Steel and Nylon Nose
  • Standard End Force
  • Add “P” to end of part number for optional nylon patch. Do not use the nylon patch if threading into soft material such as aluminum.
  • Add “PT” for nylon pellet.

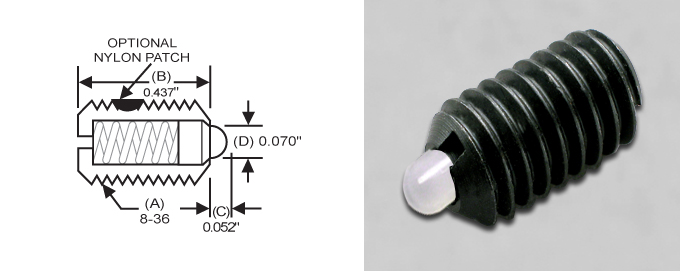

Steel Nose P/N Nylon Nose P/N Thread (A) Body Length (B) Nose Length (C) Nose Dia (D) Start End Force (lbs) End End Force (lbs)
SW10-2AS SWN10-2AS 8-32 0.437 0.052 0.070 1.5 4.7
SW10-2S SWN10-2S 8-36 0.437 0.052 0.070 1.5 4.7
SW10-3S SWN10-3S 10-32 0.468 0.065 0.093 1.7 6.2
SW10-4S SWN10-4S 1/4-20 0.531 0.078 0.119 3 10.5
SW10-5S SWN10-5S 5/16-18 0.562 0.084 0.135 3.7 15.5
SW10-6S SWN10-6S 3/8-16 0.625 0.110 0.186 4.5 18.5
SW10-8S SWN10-8S 1/2-13 0.750 0.151 0.248 5 28.5
SW10-10S SWN10-10S 5/8-11 1.062 0.215 0.310 7 50
