T-Handle – Locking Nose Without Nylon Patch

  • Locking T-Handle Spring Plungers
  • Steel and Stainless Steel

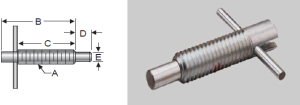

Steel P/N Stainless P/N Thread Size (A) Body Length (B) Thread Length (C) Nose Length (D) Nose Dia (E) Start End Force (lbs) Final End Force (lbs)
TH25 STH25 1/4-20 1.14 0.80 0.25 0.155 1.0 2.5
TH38 STH38 3/8-16 1.68 1.20 0.38 0.233 2.0 4.0

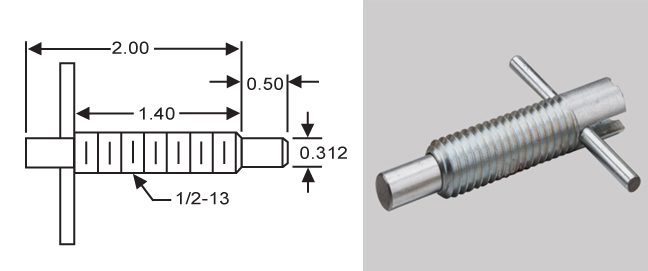

TH50 STH50 1/2-13 2.00 1.40 0.50 0.312 2.5 5.0
TH58 STH58 5/8-11 2.38 1.70 0.63 0.375 2.5 5.0
